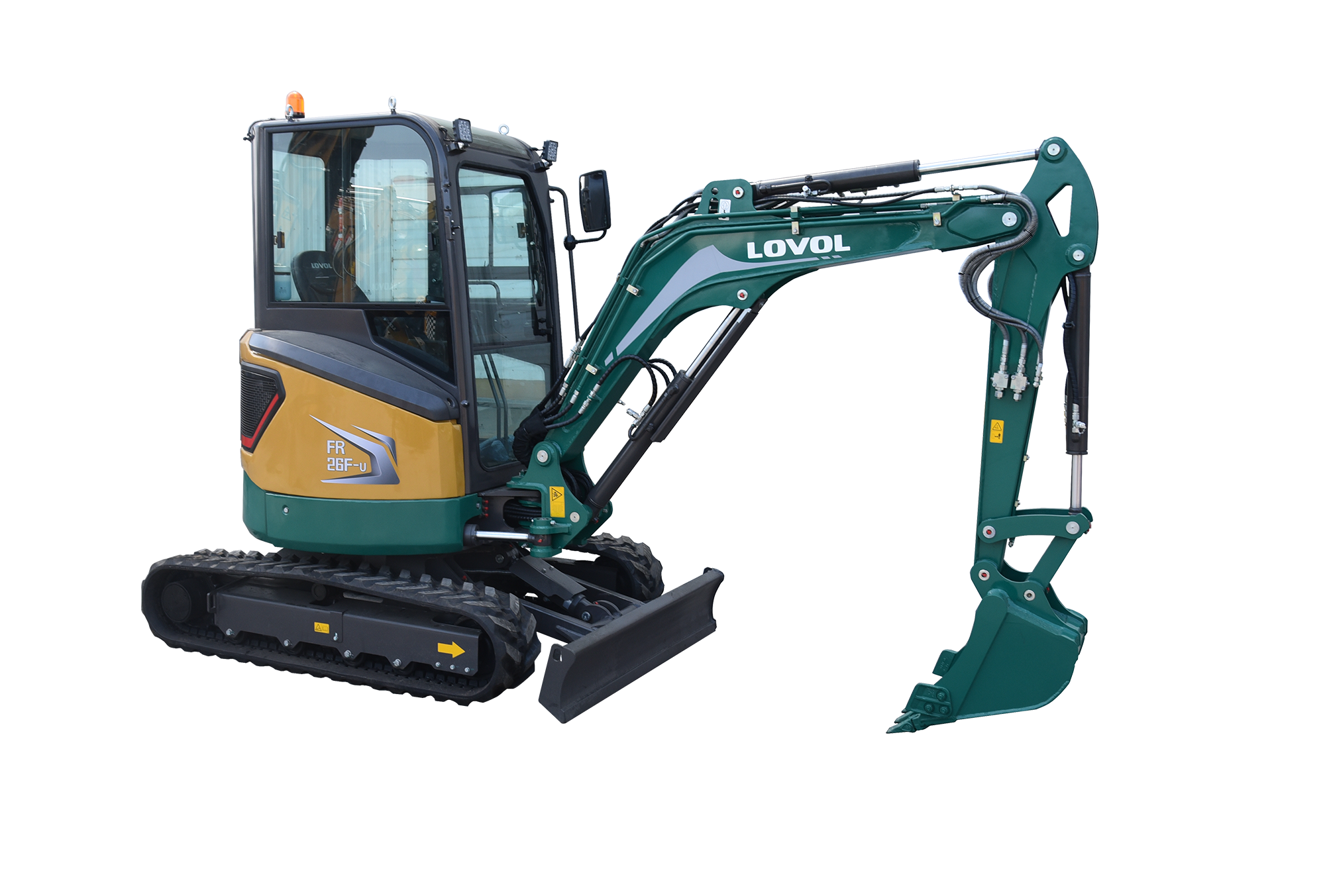

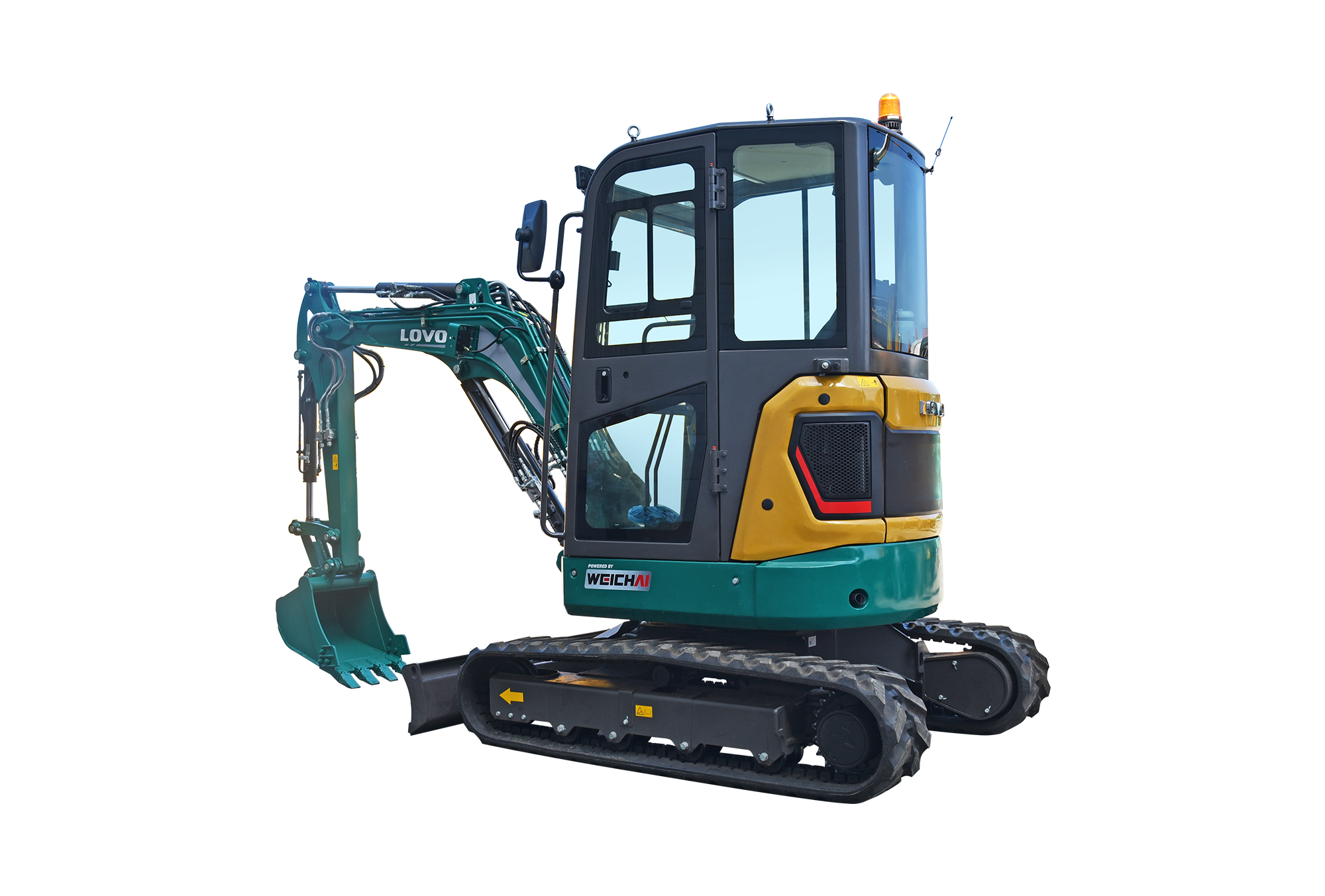

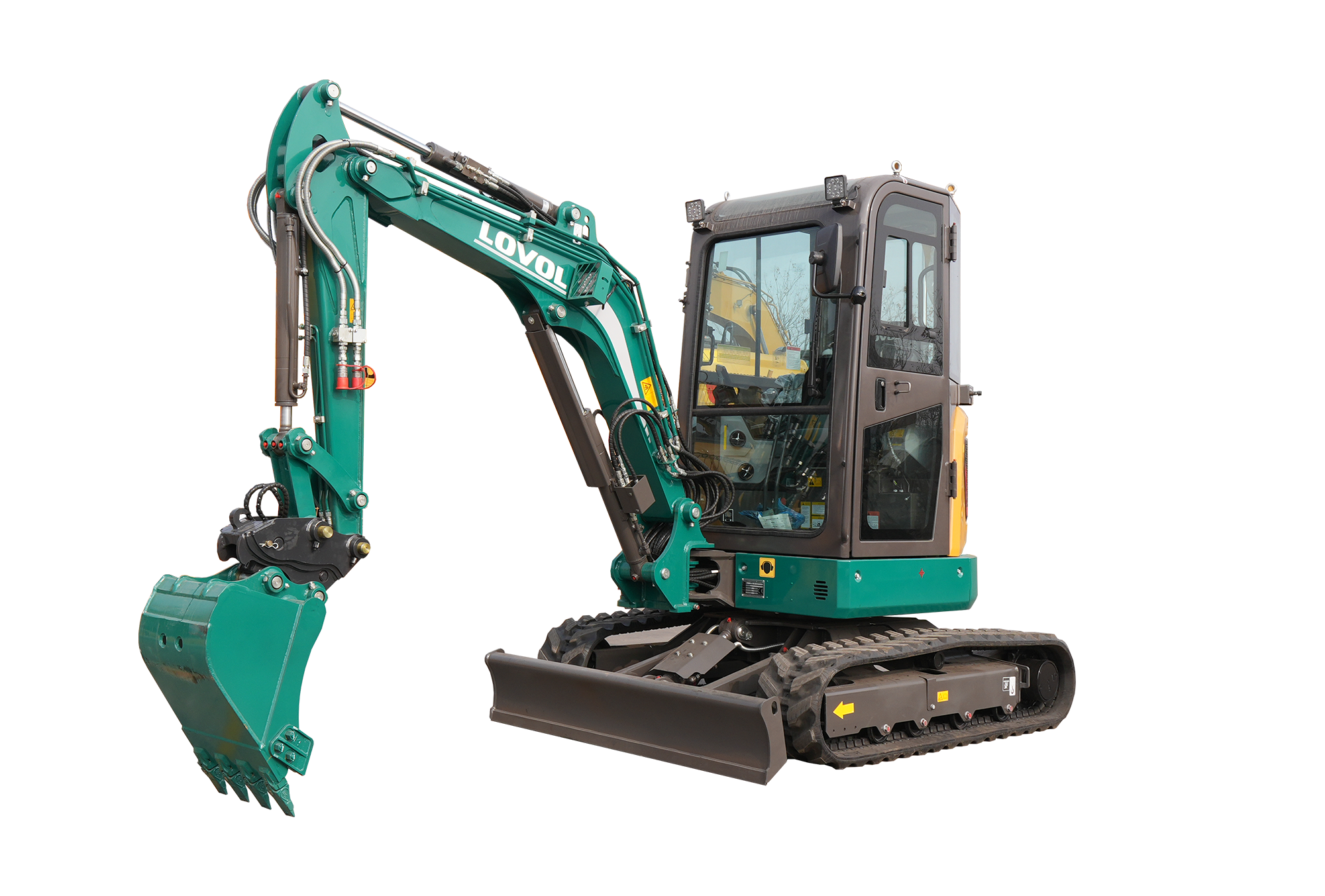

Load-sensing flow control, large bucket capacity, tailless design, side swing boom, making the entire machine more flexible and efficient.
Yanmar engine, Hengli + Nachi hydraulic system, boom and arm equipped with anti-burst valves, wide chassis, FOPs & ROPs cab, making the entire machine more reliable.
Air-conditioned cab, human-centered design, one-button start, more comfortable operation.
Three-sided open covers make it easy to maintain the engine and hydraulic system.
Item | Unit | Parameter |
Operating Weight | kg | 2850 |
Bucket Capacity | m³ | 0.08 |
Rated Power | kW | 15.2/2500 |
Emissions | - | EU Stage V |
Transportation Dimensions(L*W*H) | mm | 4230*1550*2425 |
Max.Digging Radius | mm | 4887 |
Max.Digging Height | mm | 4480 |
Max.Digging Depth | mm | 2845 |
Max.Unloading Height | mm | 3098 |
Bucket Digging Force | kN | 27.5 |
Stick Digging Force | kN | 14.2 |
Track Width | mm | 300 |
