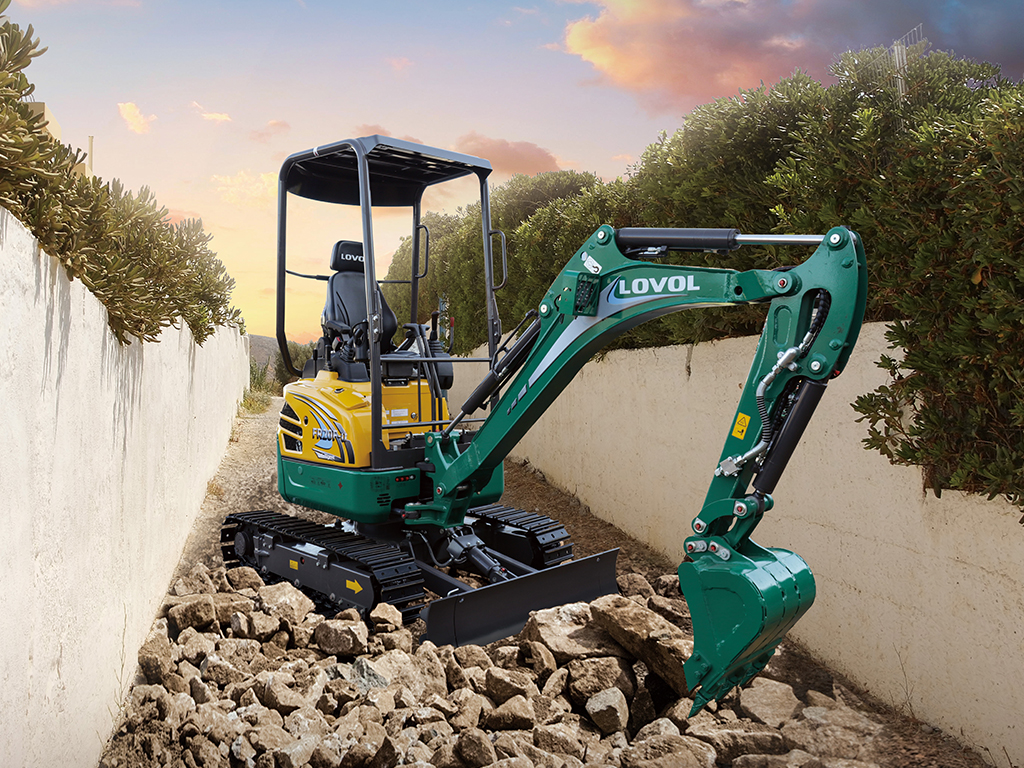

Tailless, side swing arm, telescopic chassis, split cab, foldable dozer blade, quick-coupling device for various attachments, switchable single/double-direction breaker lines, all highlighting the machine's flexibility.
Large displacement main pump and travel motor, high-torque cycloidal swing motor, large bucket capacity, significantly enhancing work efficiency.
Yanmar engine, imported hydraulic components; Boom and arm equipped with anti-burst valves; Internal hydraulic piping; Safety-certified cab; Cast steel structure for boom side shift and boom front fork rear seat, overall reliability and durability.
FOPs & ROPs cab, one-button start, new intelligent instrument panel, multi-directional adjustable seat for ergonomic functionality, cup holder, phone box, headrest, three-way opening covers. Both operation and maintenance are very convenient and comfortable.
| Item | Unit | Parameter |
| Operating Weight | kg | 2000 |
| Bucket Capacity | m³ | 0.04 |
| Rated Power | kW | 10.9/2400 |
| Emissions | - | EU Stage V |
| Transportation Dimensions(L*W*H) | mm | 3575*1040*2347 |
| Max.Digging Radius | mm | 3905 |
| Max.Digging Height | mm | 3400 |
| Max.Digging Depth | mm | 2440 |
| Max.Unloading Height | mm | 2310 |
| Bucket Digging Force | kN | 15.2 |
| Stick Digging Force | kN | 8.5 |
| Track Width | mm | 230 |
