Medium Excavators

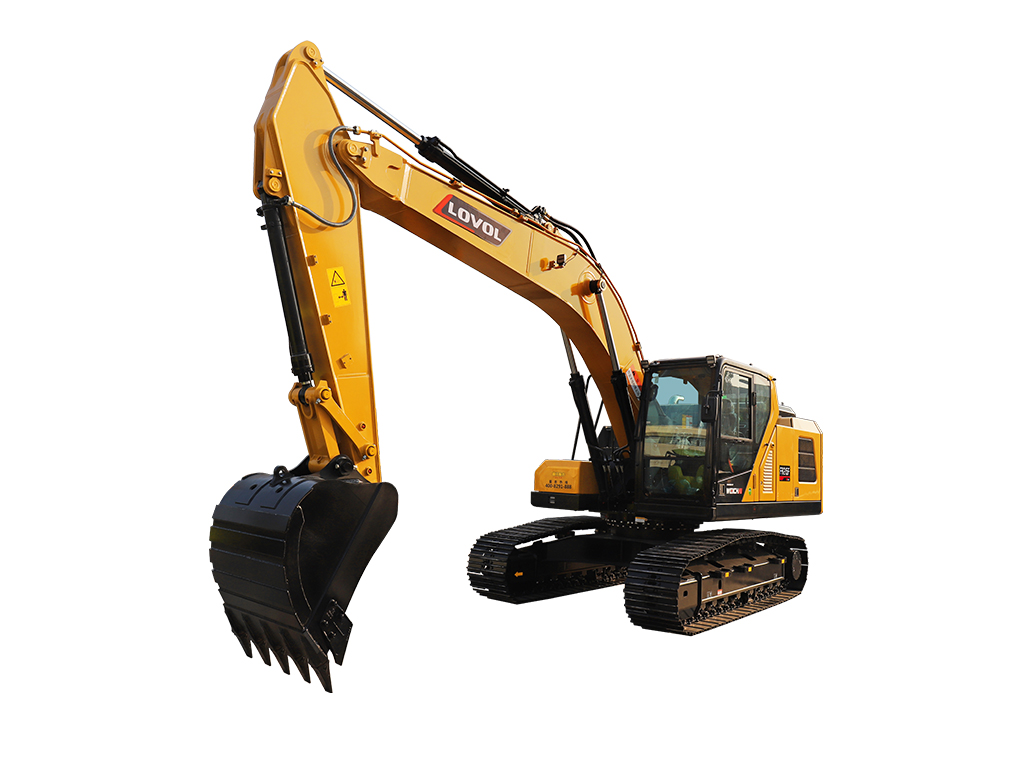

FR215F

Operating Weight(kg) 21600
Bucket Capacity(m³) 1.1
Rated Power(kW) 123/2000

Global Network

Compare

Product Manual

FR215F

Features
Parameter
Inquiry
Related Products

Features

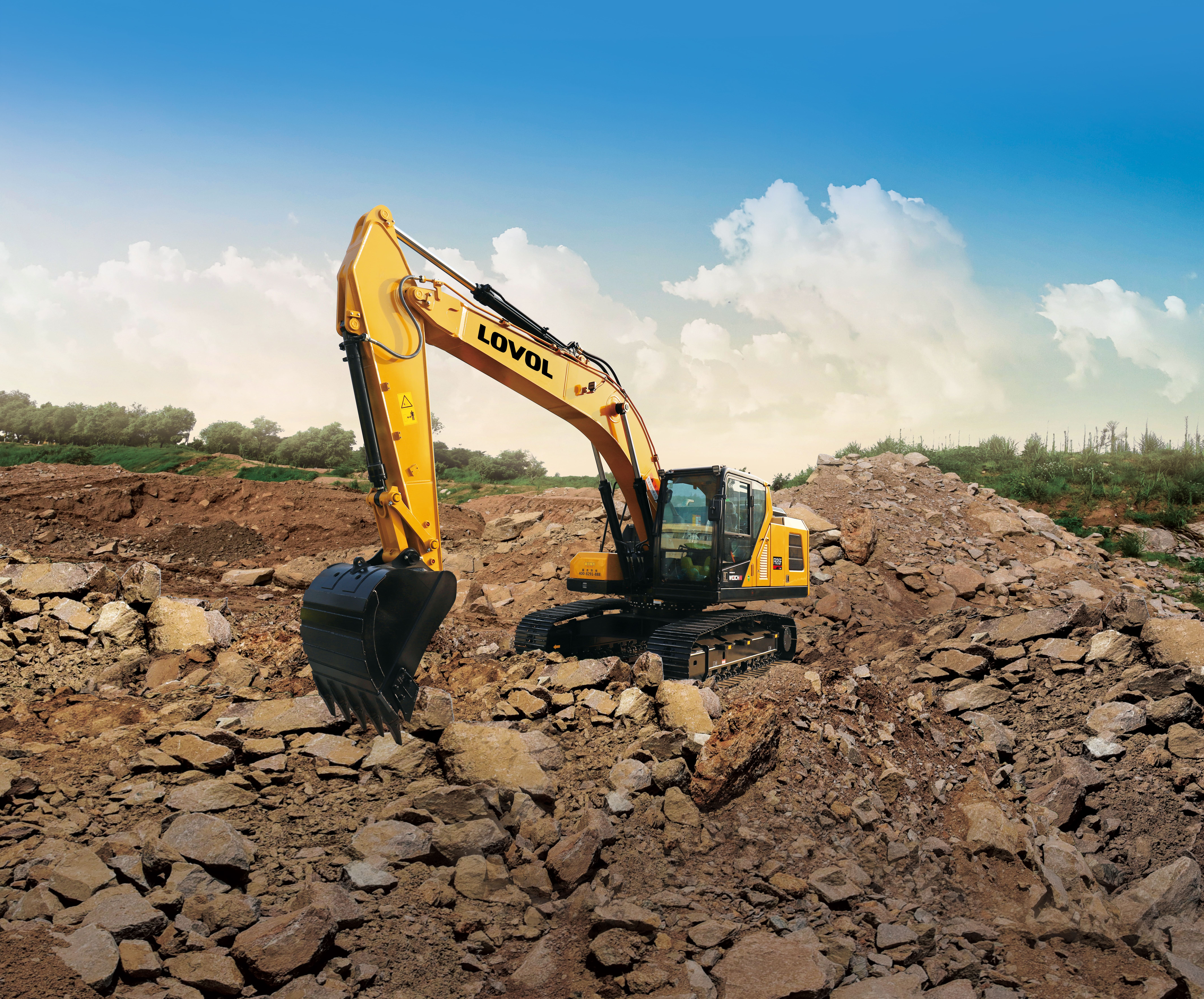

Reliable

Global leading test benches for engine, main pump, and main valve components, multifunctional comprehensive testing ground for the whole machine, PXE material fuel tank larger and cleaner, large cross-section three-stage boom, forged axle seat, making the entire machine more reliable.

Efficient

Utilizing Weichai Linde hydraulic powertrain technology, optimized swing logic, providing multiple loading angles to adapt to different working conditions, achieving maximum work efficiency. Overall work efficiency improved by 10% compared to E series, fuel efficiency increased by over 15%.

Safe and comfortable

New structure F series cab, optimized air conditioning ducts and vents, low ventilation resistance and noise, fast temperature adjustment; Cab meets FOPs & ROPs regulations, making driving safer.

Intelligent

Newly developed Lovol's intelligent operation system enables intelligent interaction, automatic recognition of working conditions, auxiliary operation, and personalized customization.

Inquiry

Thank you for your interesting on our product, in order to serve you better please help us know you more by filling form below.

Item	Unit	Parameter
Operating Weight	kg	21600
Bucket Capacity	m³	1.1
Rated Power	kW	123/2000
Emissions	-	Stage III
Transportation Dimensions（LWH）	mm	9680/2800/3322
Max.Digging Radius	mm	9845
Max.Digging Height	mm	9915
Max.Digging Depth	mm	6630
Max.Unloading Height	mm	7140
Bucket Digging Force	kN	133
Stick Digging Force	kN	106
Track Width	mm	600
