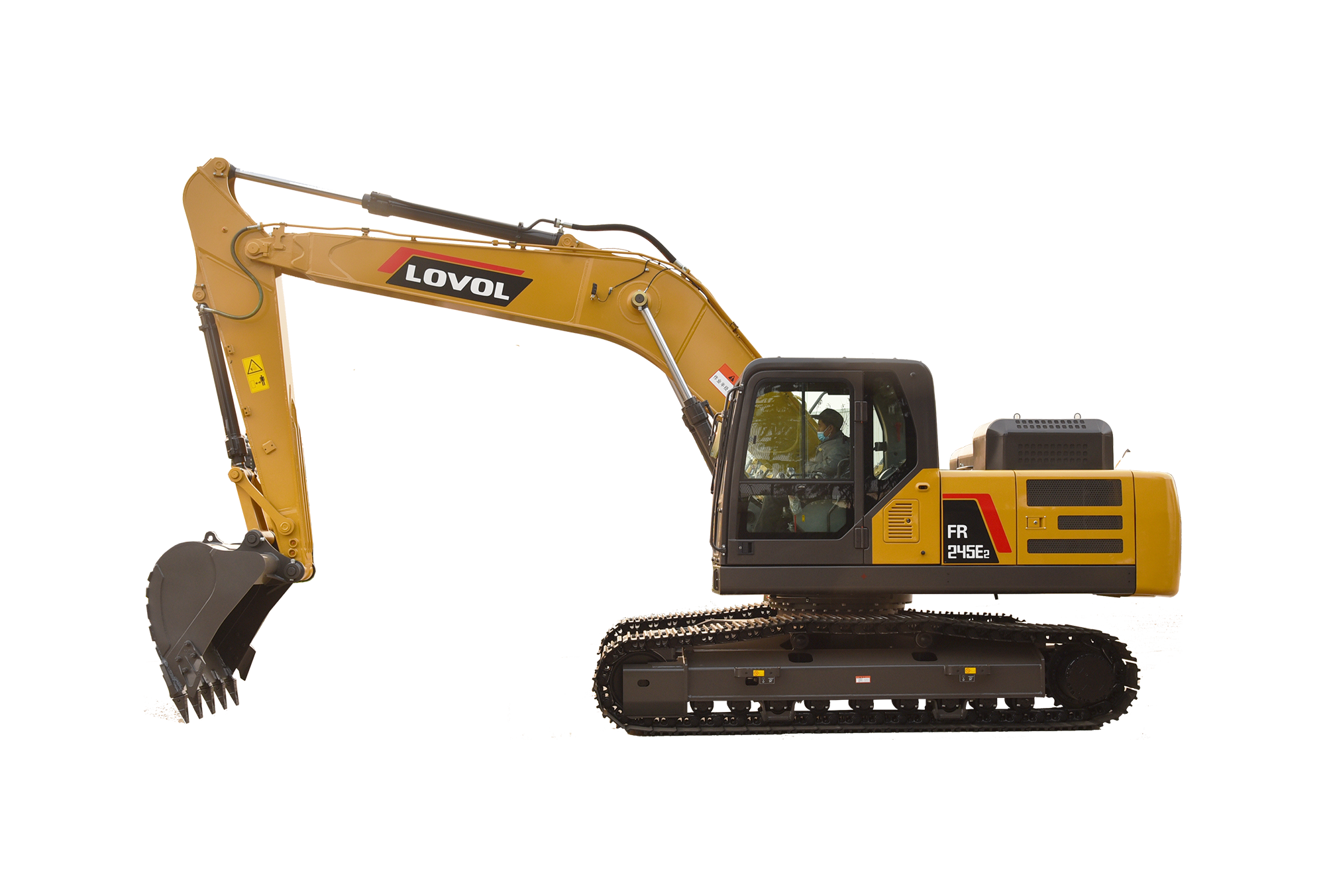

Weichai powertrain perfectly matched, large bucket capacity, large displacement main pump, high torque rotary motor, to ensure that the whole machine works efficiently, fuel consumption is 3-5% lower than competitors.
WP7H engine + Linde hydraulic system, assembly supply, 5 years 10000 hours warranty for key parts; large cross-section three-section movable arm, forged shaft seat, the whole machine is more reliable.
the new structure of Generation F cab with optimized air-conditioning channels and air outlets, low ventilation resistance and low noise, fast temperature adjustment; driving meets the requirements of FOPs & ROPS regulations, safer driving.
Three-stage parallel integrated fuel system, easy maintenance; Integrated air filter, maintenance interval doubled.
| Item | Unit | Parameter |
| Operating Weight | kg | 23100 |
| Bucket Capacity | m³ | 1.2 |
| Rated Power | kW | 160 |
| Emissions | - | Stage III |
| Transportation Dimensions(L*W*H) | mm | 9625X3180X3200 |
| Max.Digging Radius | mm | 9875 |
| Max.Digging Height | mm | 10190 |
| Max.Digging Depth | mm | 6510 |
| Max.Unloading Height | mm | 7260 |
| Bucket Digging Force | kN | 156 |
| Stick Digging Force | kN | 109 |
| Track Width | mm | 600 |
