Large Excavators

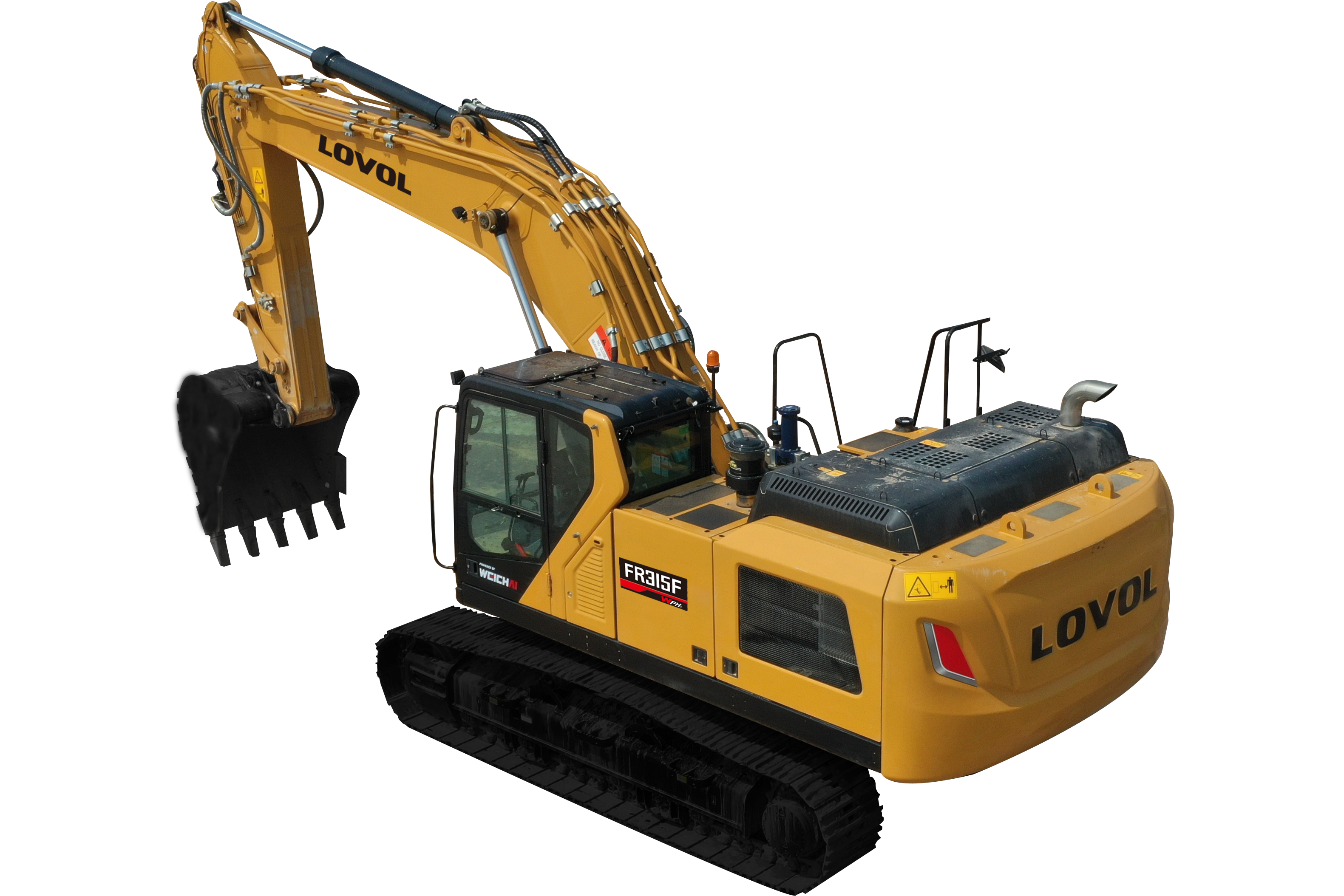

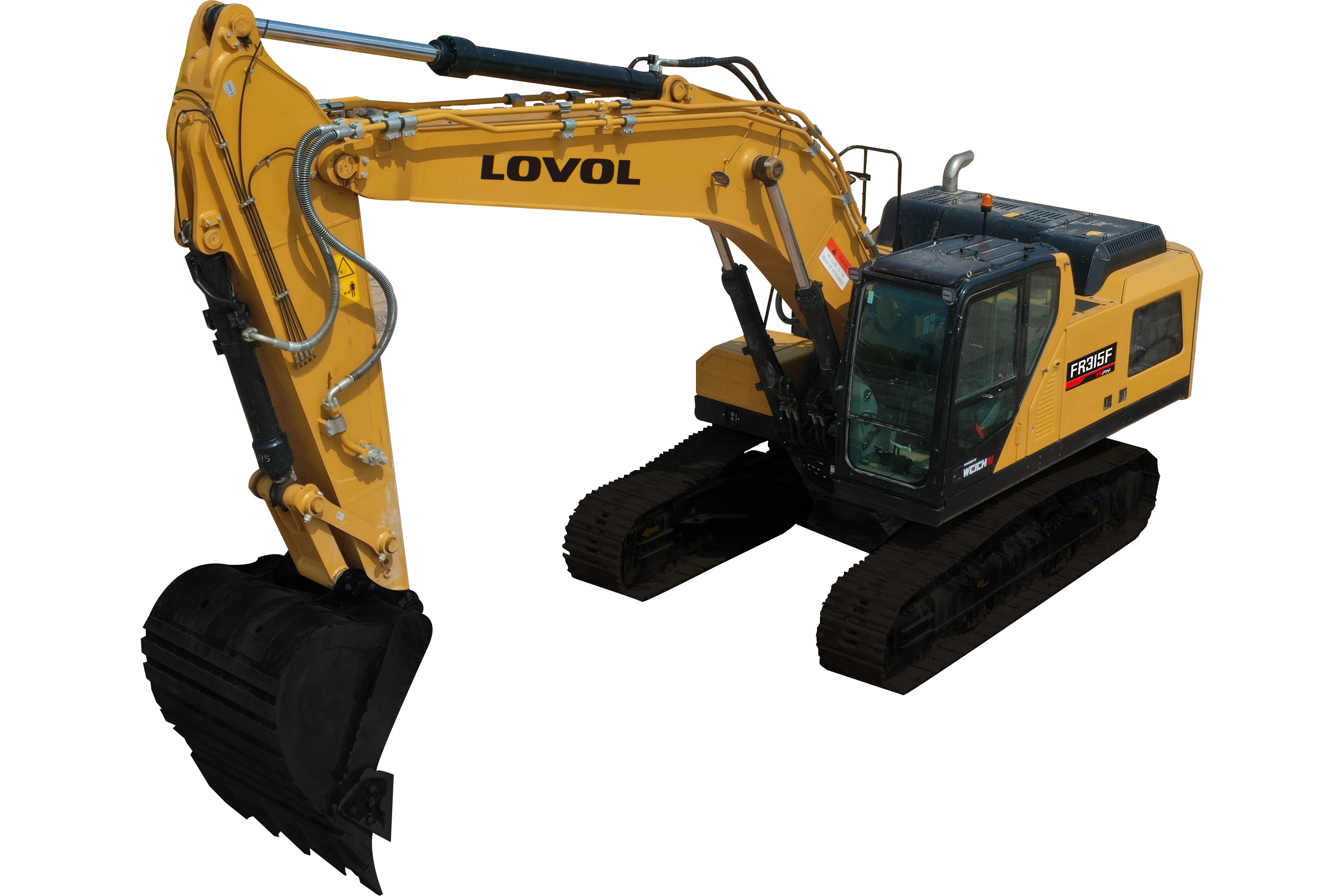

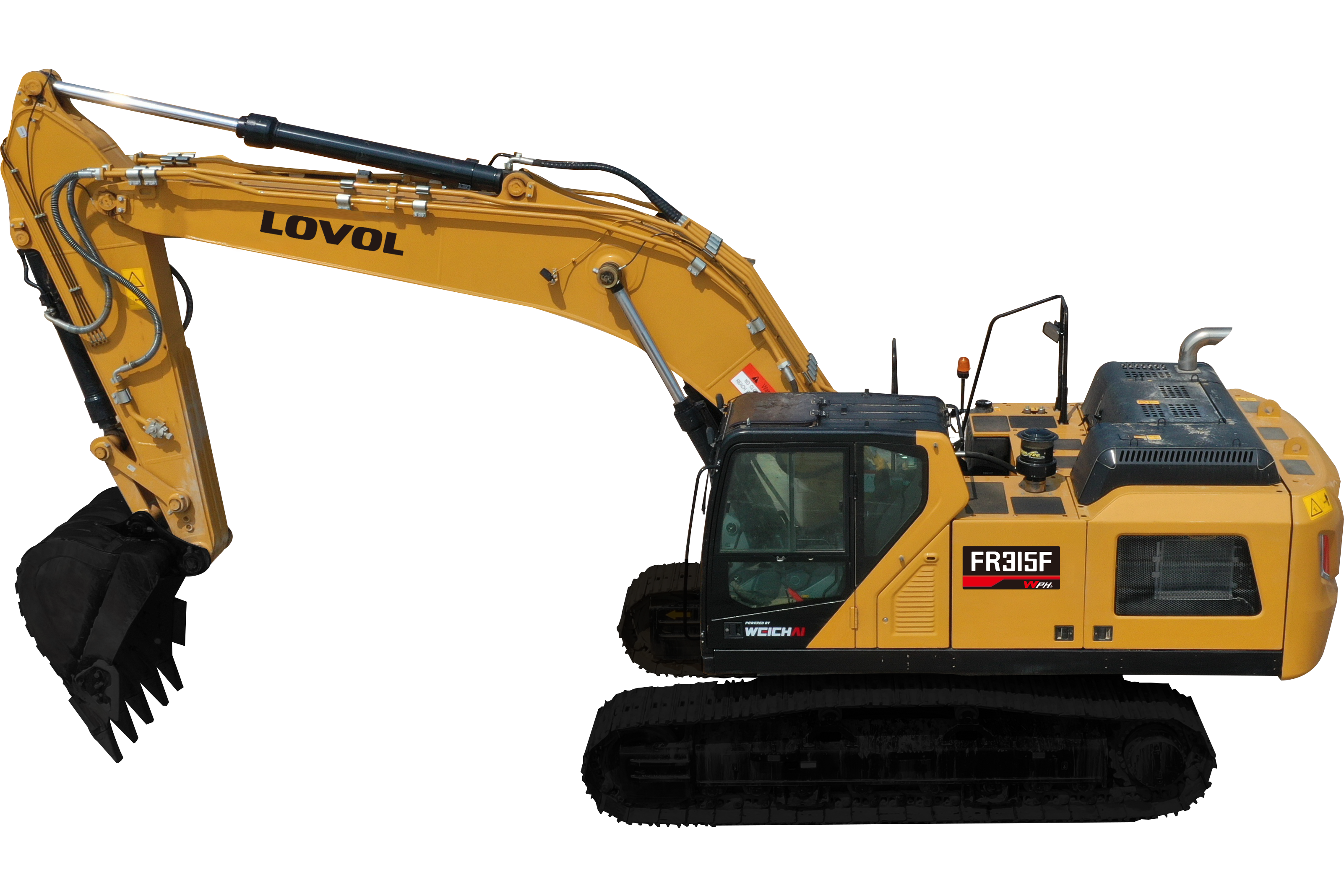

FR315F
  • Operating Weight(kg) 31300
  • Bucket Capacity(m³) 1.7
  • Rated Power(kW) 228
Global Network
Product Manual
FR315F
FR315F
FR315F
FR315F
FR315F
  • Parameter
  • Inquiry
  • Related Products
Parameter
Product Manual
Item Unit Parameter
Operating Weight kg 31300
Bucket Capacity m³ 1.7
Rated Power kW 228
Emissions - Stage III
Transportation Dimensions（L*W*H） mm 10882*3190*3348
Max.Digging Radius mm 10698
Max.Digging Height mm 10277
Max.Digging Depth mm 6806
Max.Unloading Height mm 7020
Bucket Digging Force kN 213
Stick Digging Force kN 171
Track Width mm 600
Inquiry
Thank you for your interesting on our product, in order to serve you better please help us know you more by filling form below.
idenifyingcode
I agree with LOVOL’s privacy statement for more information on how we process personal data
Related
Products
FR330E2-H
FR330E2-H
More

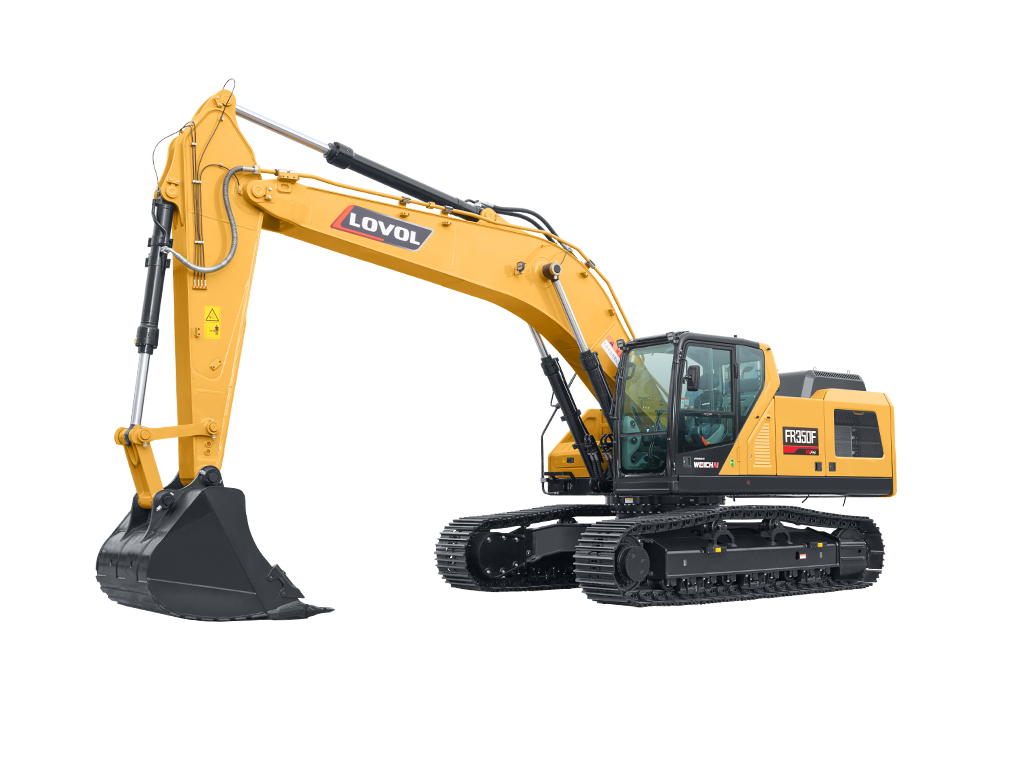

FR335F
