Mining Excavators

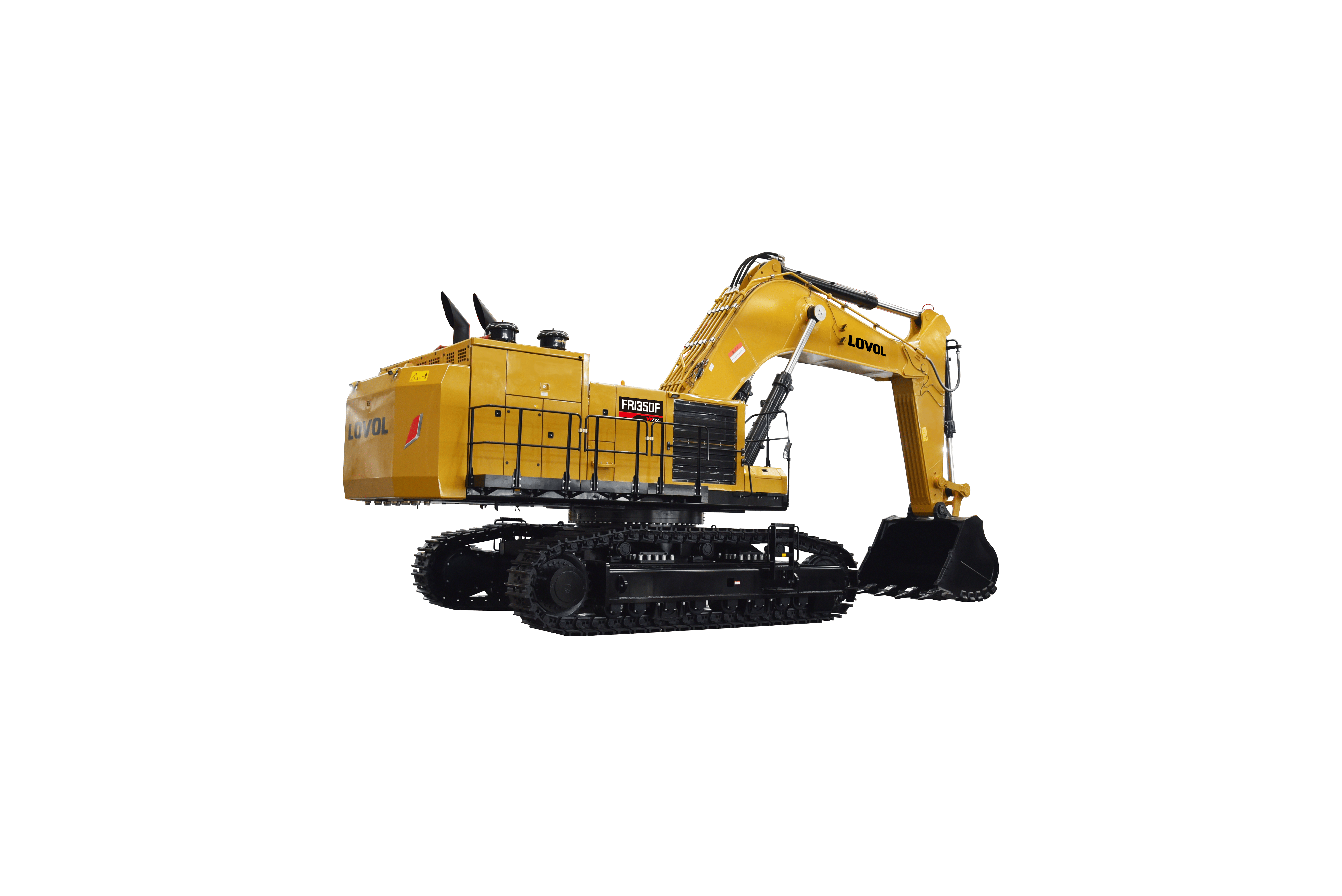

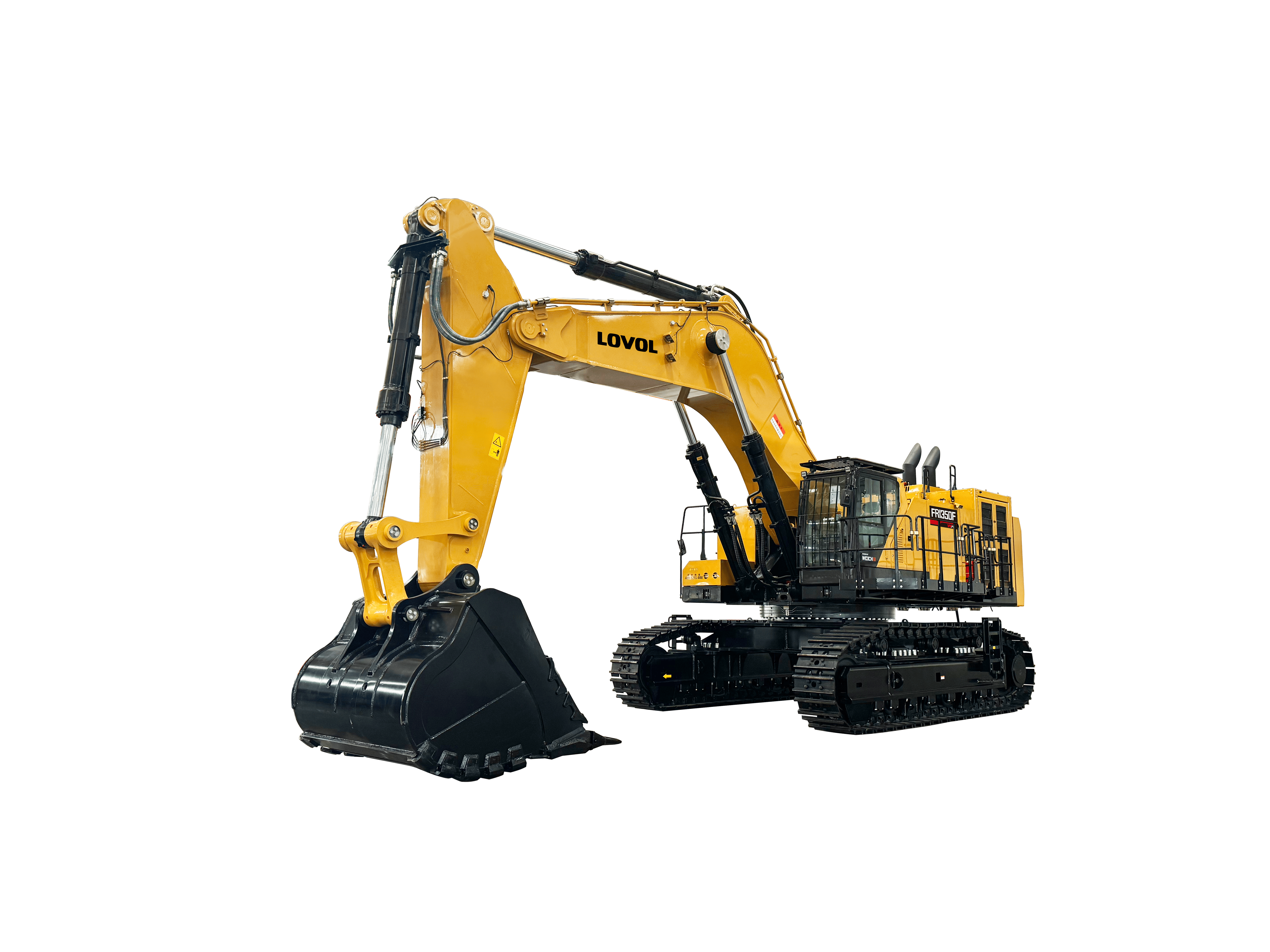

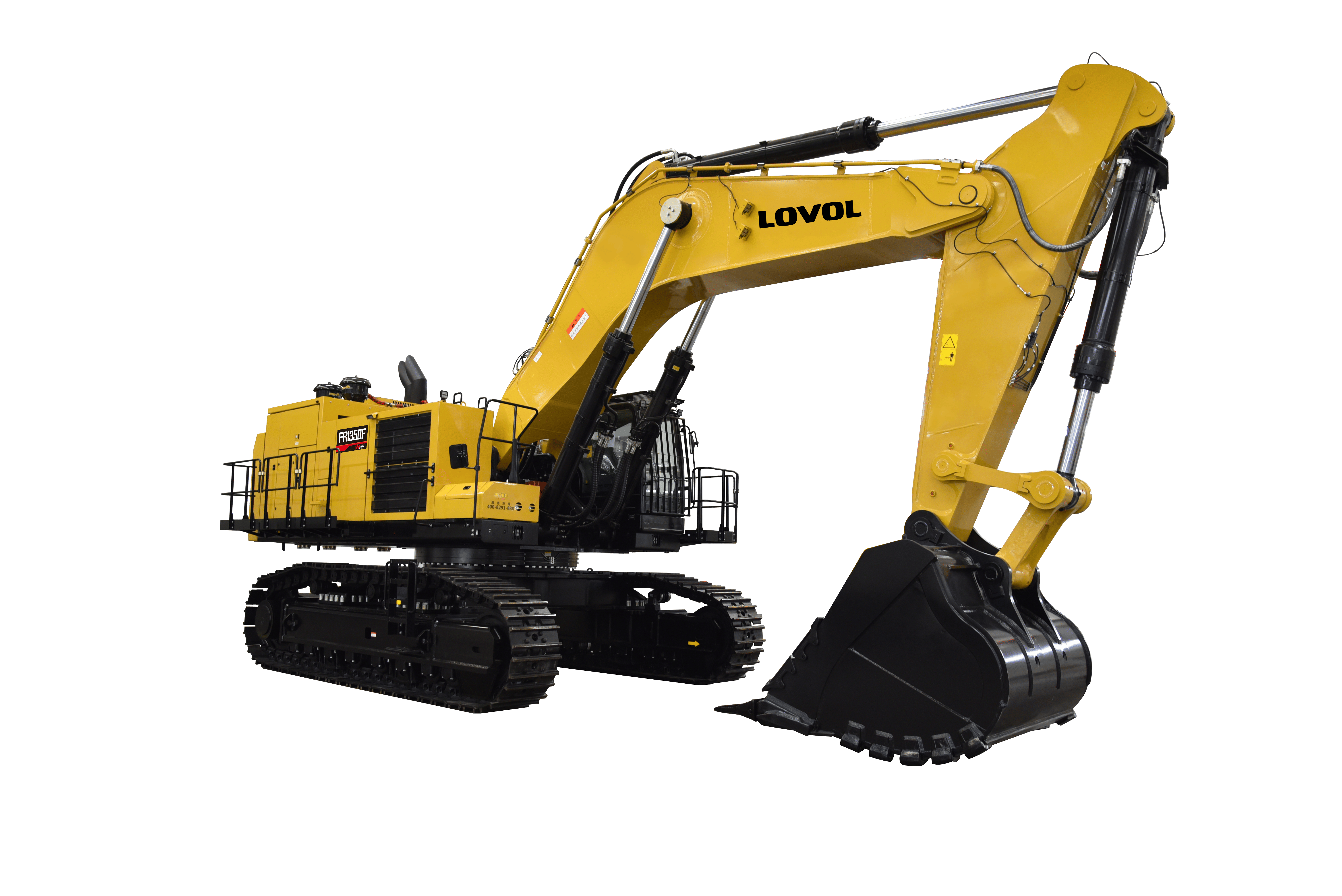

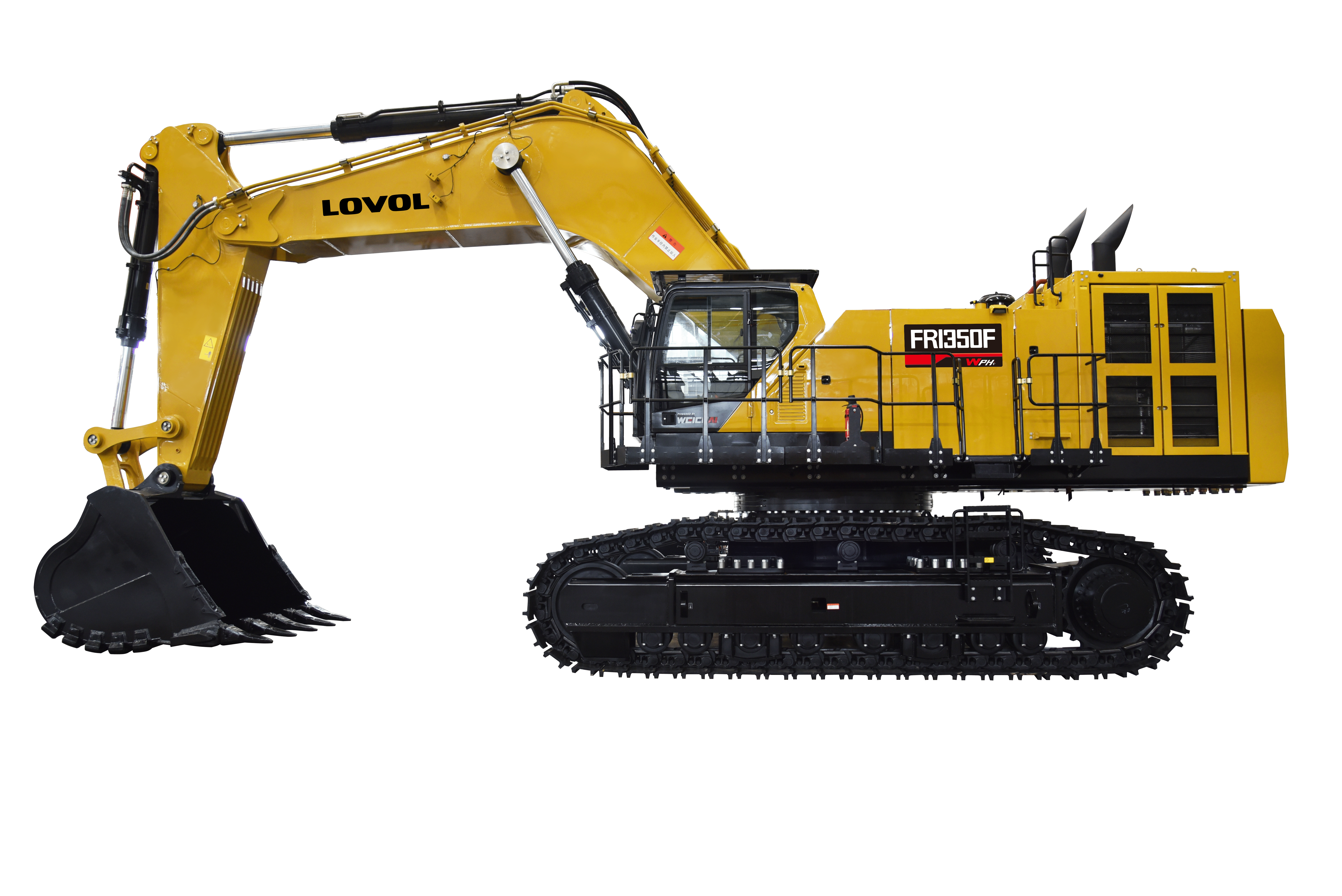

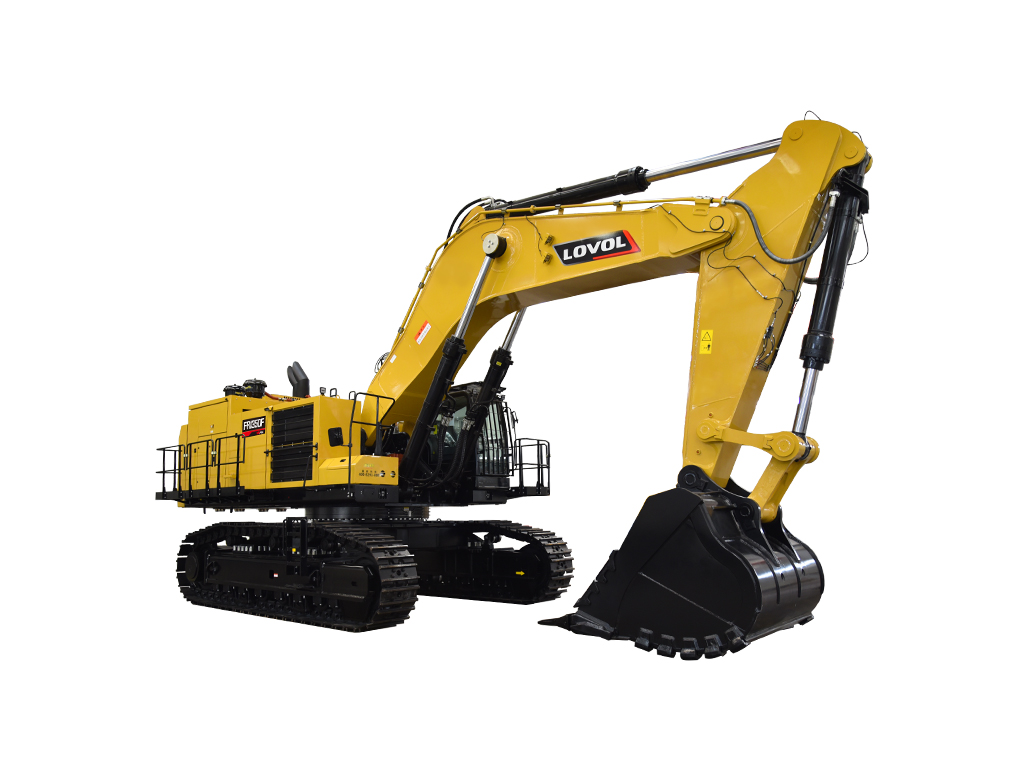

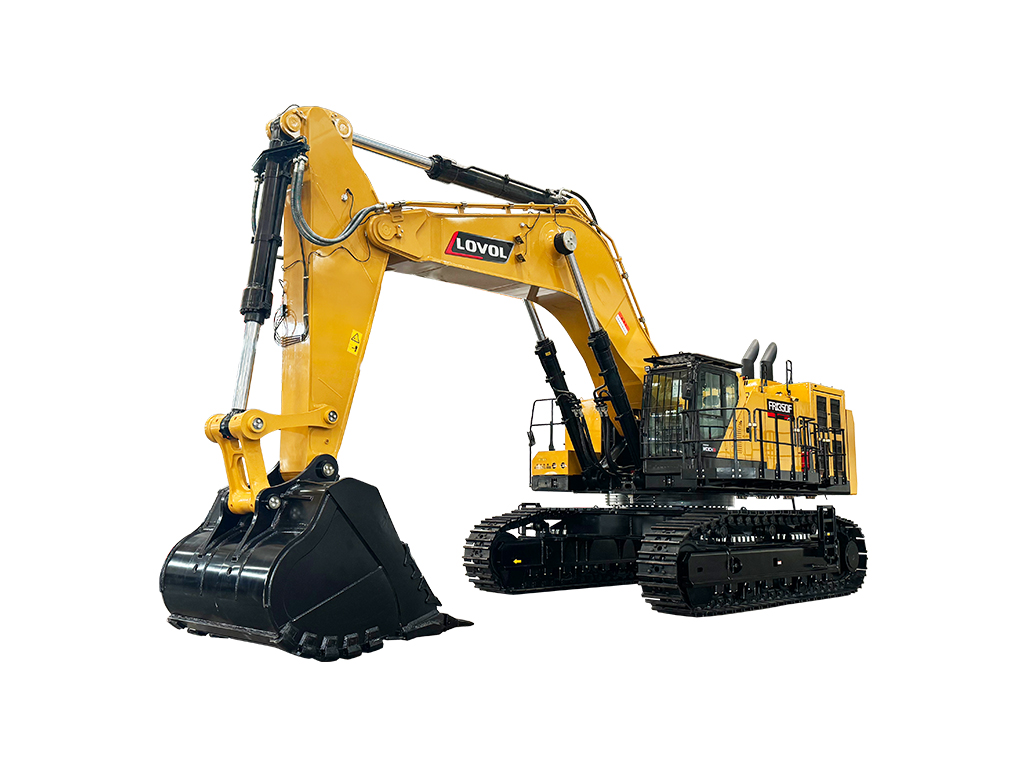

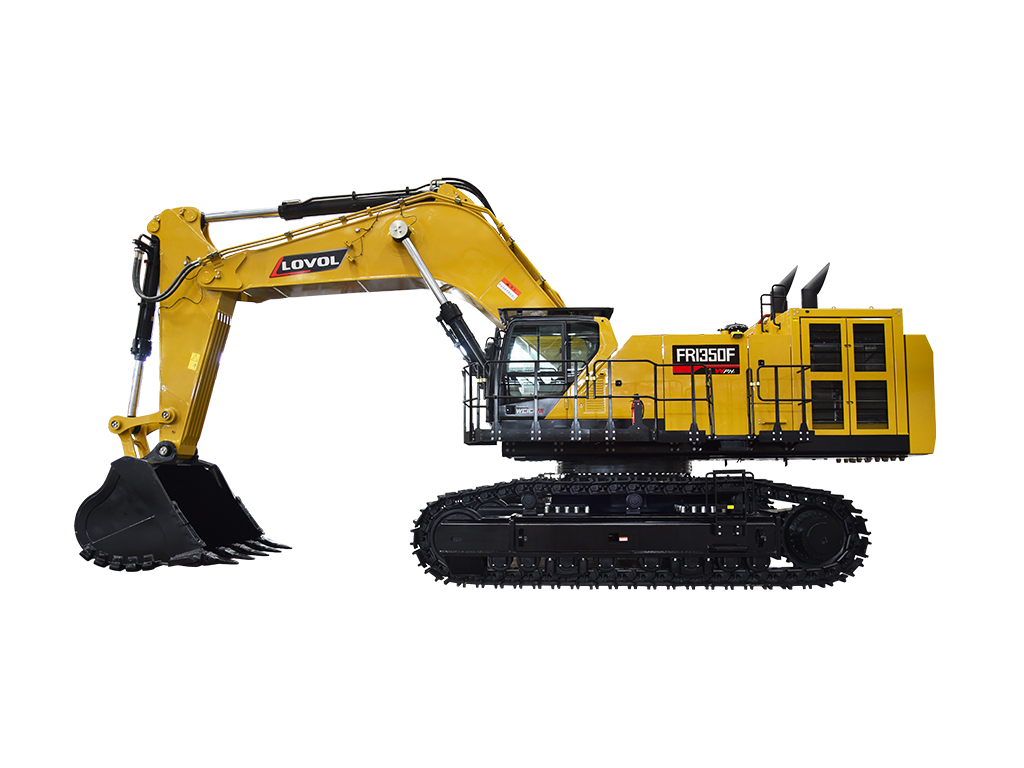

FR1350F
  • Operating Weight(kg) 125000
  • Bucket Capacity(m³) 8.5
  • Rated Power(kW) 680
Global Network
Product Manual
FR1350F
FR1350F
FR1350F
FR1350F
FR1350F
FR1350F
  • Features
  • Parameter
  • Inquiry
  • Related Products
High Flow Main Valve
Features
High Flow Main Valve

The main valve adopts a combi-nation of OCV36E and OCV36E-F4 four-way auxiliary valves. The four-way auxiliary valves are enhanced with boom, dipper, and bucket spool valves. The travel spool valve is controlled electronically, result-ing in smoother and more adjustable movements.

Weichai 8M33 Engine

The engine's thermal efficiency leads the industry, with the lowest fuel consumption reach-ing 189g/kWh.

High displacement, low RPM.

High torque, high power output reaching 680kW.


Large Capacity

The machine is equipped with a standard 8.5-cubic-meter bucket and offers an optional

10-cubic-meter bucket, which significantly improves loading efficiency.

The bucket is extensively made of high-strength steel and wear-resistant steel plates, enhancing its durability and reliability.

Parameter
Product Manual
Item Unit Parameter
Operating Weight kg 125000
Bucket Capacity m³ 8.5
Rated Power kW 680
Emissions - Stage III
Transportation Dimensions（L*W*H） mm 15022*5676*6050
Max.Digging Radius mm 14000
Max.Digging Height mm 12700
Max.Digging Depth mm 8160
Max.Unloading Height mm 8030
Bucket Digging Force kN 581
Stick Digging Force kN 505
Track Width mm 700
