Mining Excavators

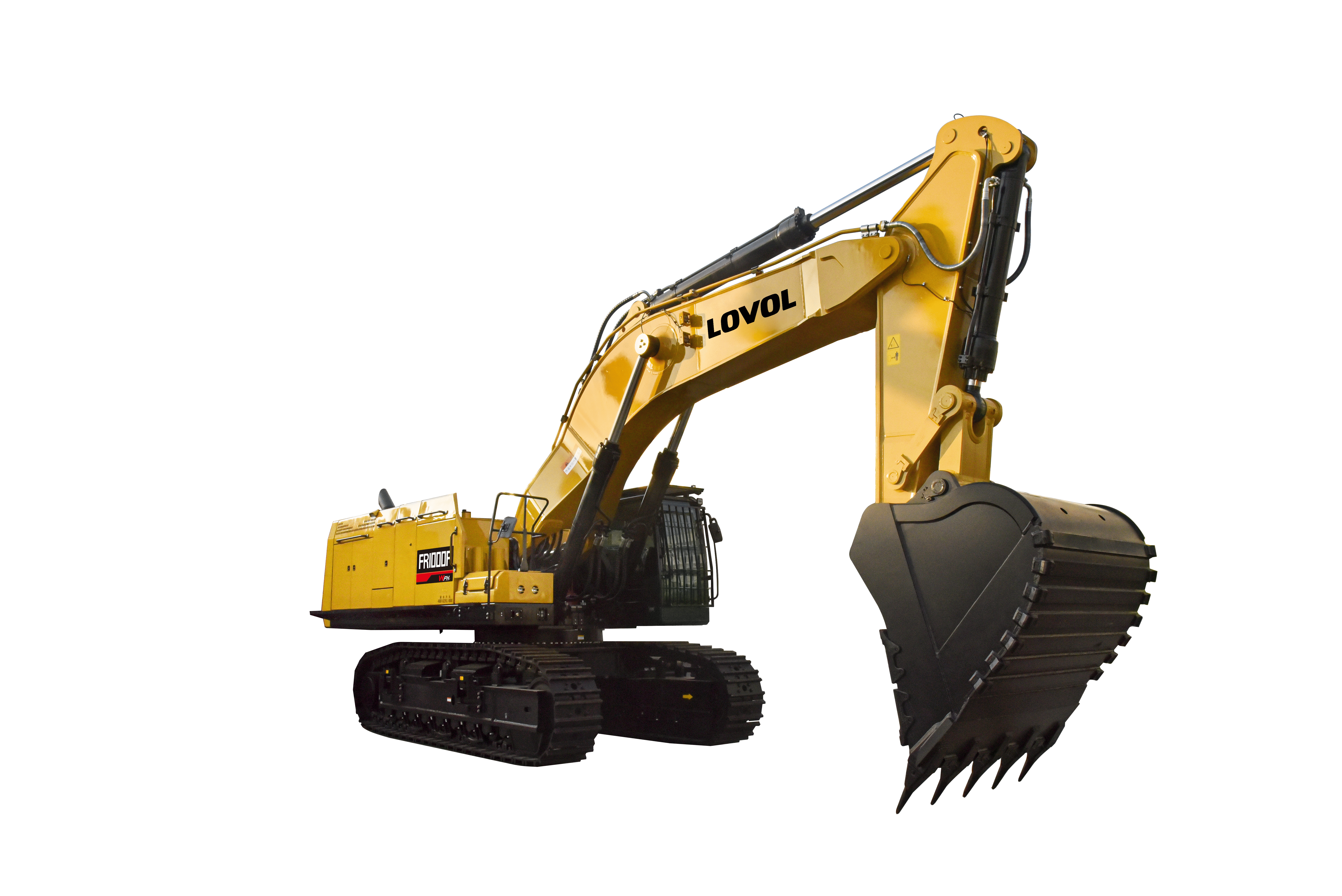

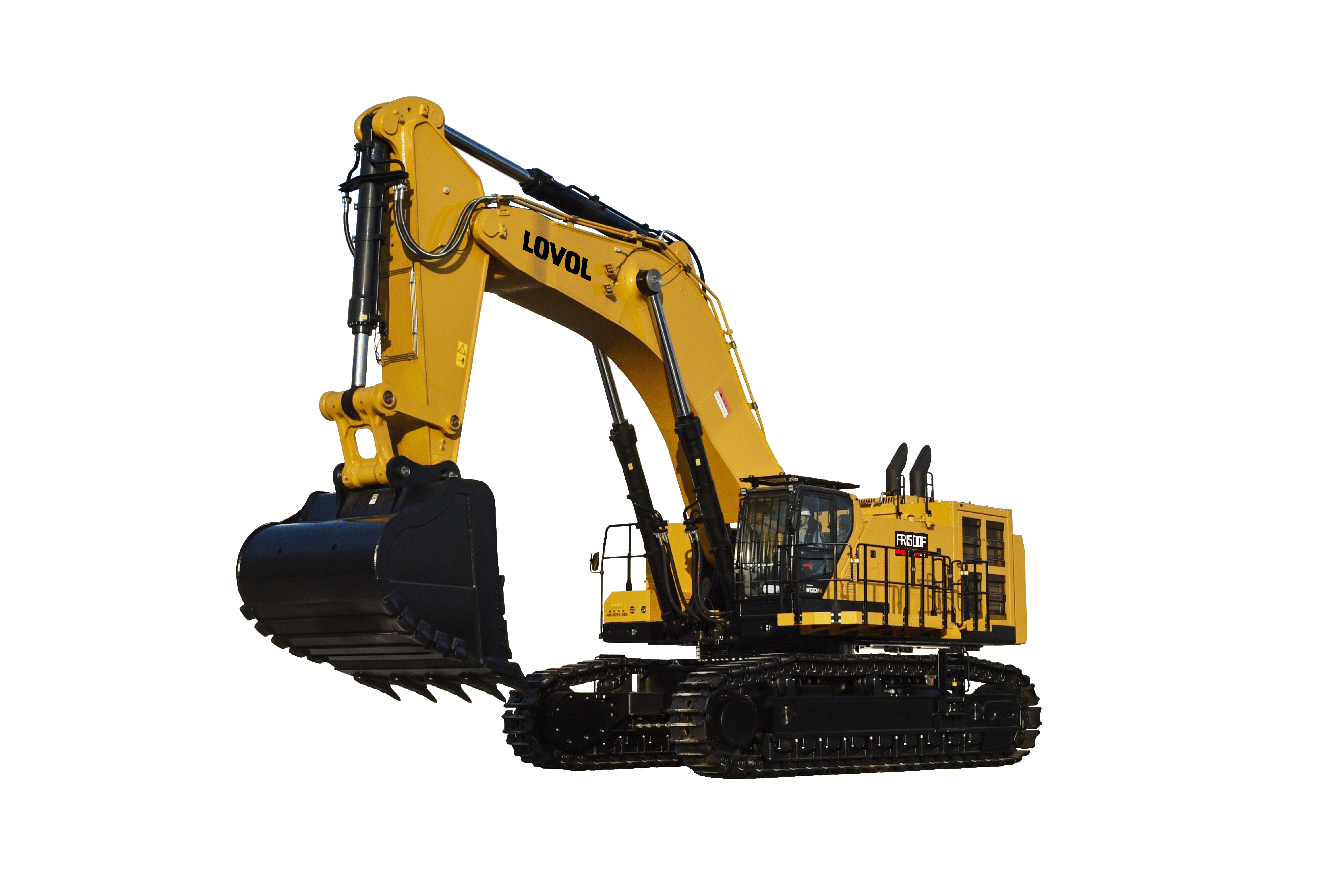

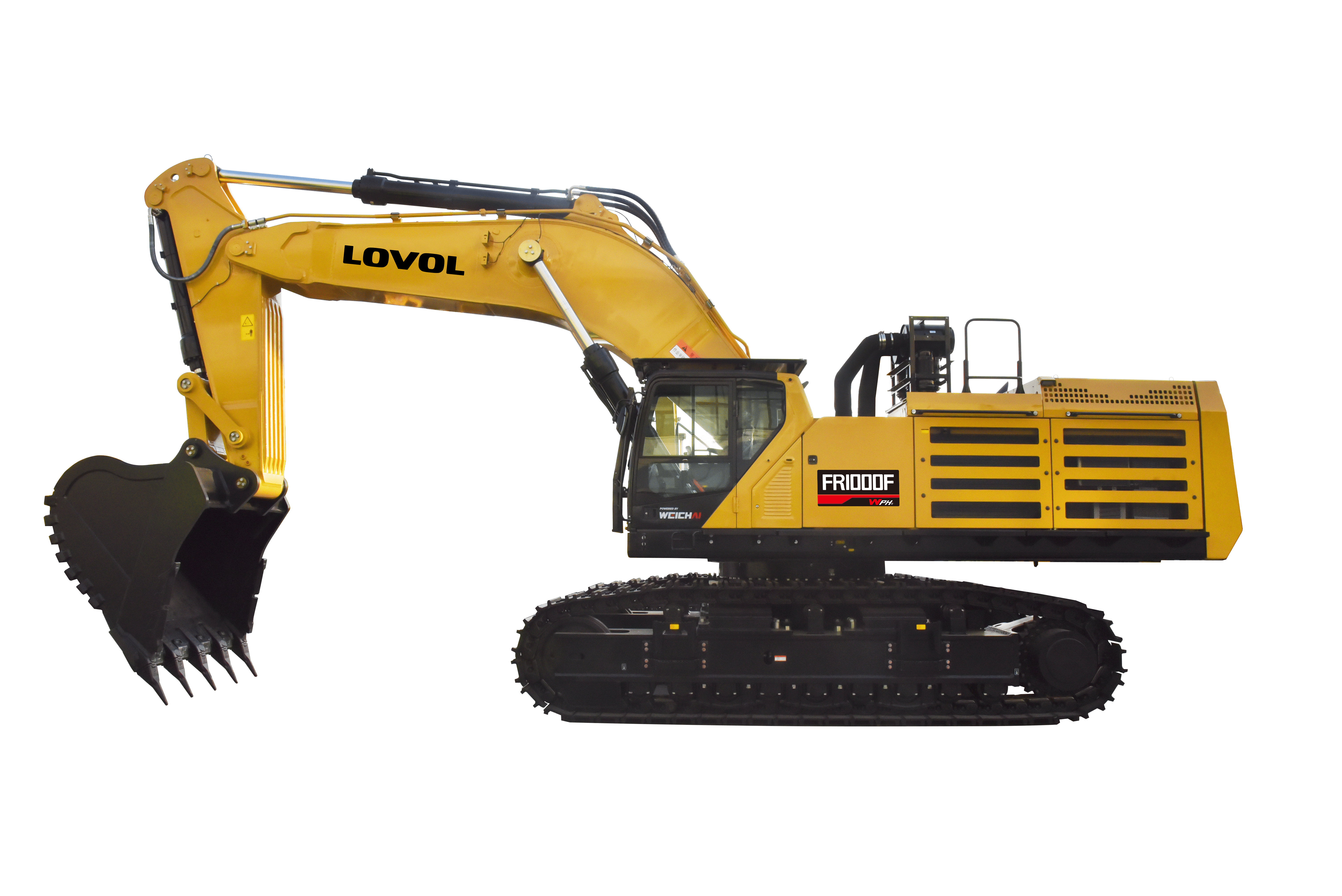

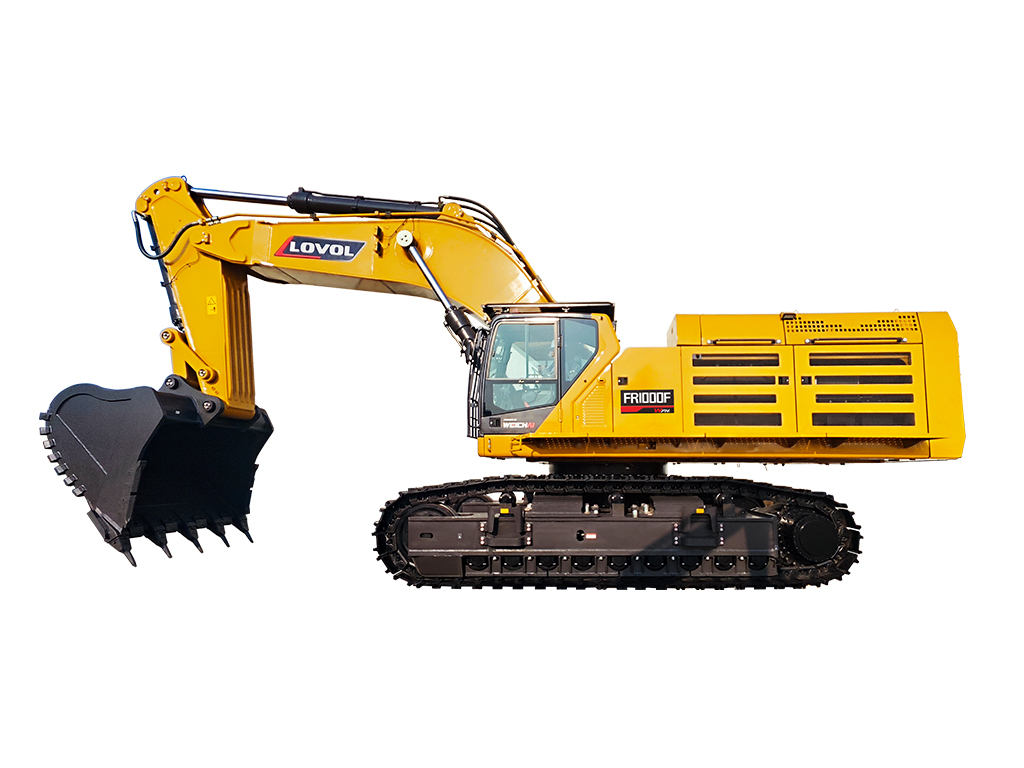

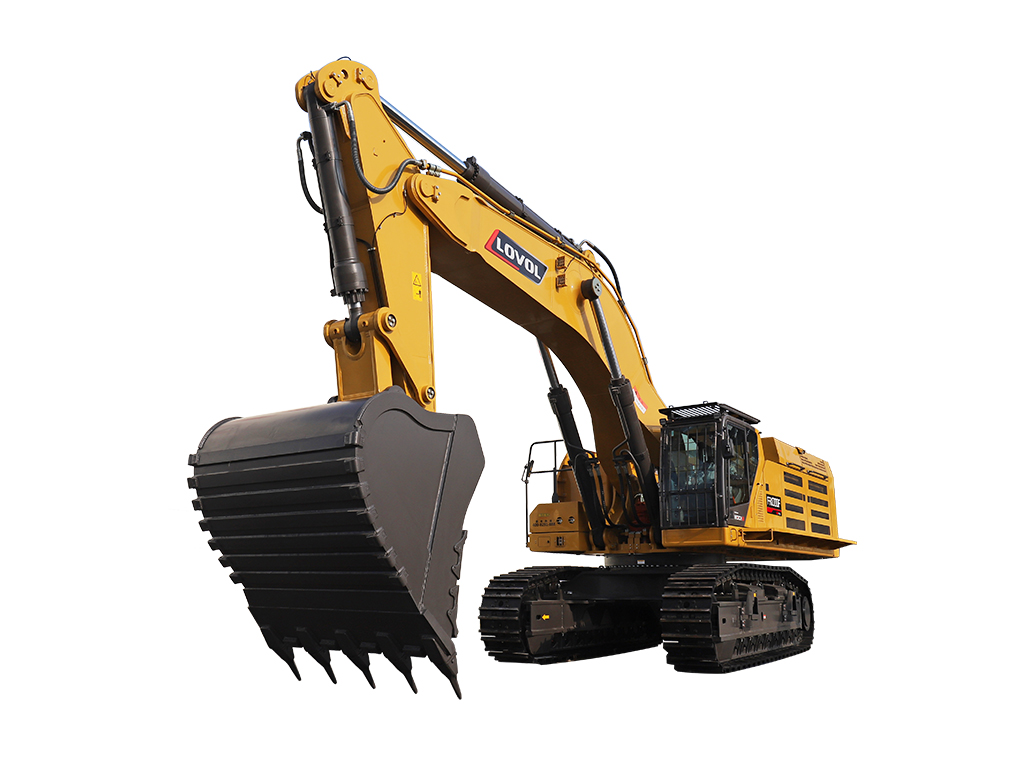

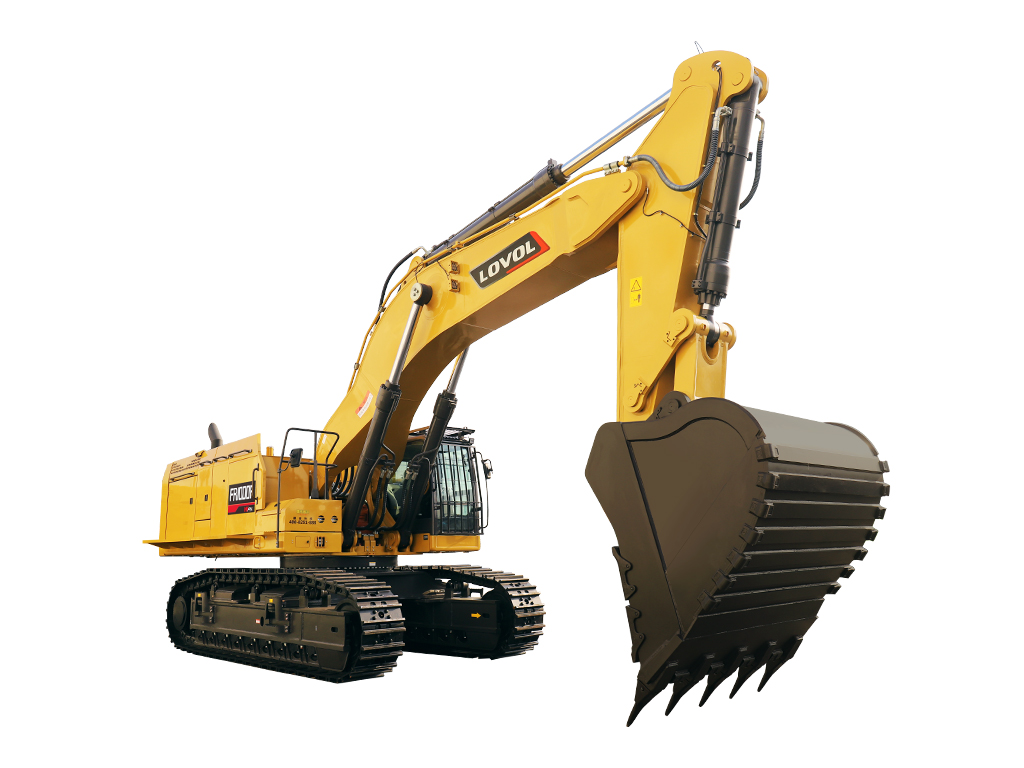

FR1000F
  • Operating Weight(kg) 101000
  • Bucket Capacity(m³) 7
  • Rated Power(kW) 571/1800
FR1000F
FR1000F
FR1000F
FR1000F
FR1000F
FR1000F
  • Features
  • Parameter
  • Video
  • Inquiry
  • Related Products
Reliable
Features
Reliable

Weichai H platform engine with a lifespan of up to 30,000 hours; Heavy-duty swing platform reducing stress by more than 40%. Chassis uses a split design specialized for mining, with a newly upgraded work device structure, lifespan exceeding 15,000 hours.

Efficient and Energy-saving

Utilizing Weichai Linde powertrain technology; Independent water and oil cooling system for better energy efficiency; 5.5 cubic meter new bucket with high capacity and wear resistance, overall work efficiency improved by 15% compared to competitors, fuel efficiency increased by more than 20%.

Comfortable

Newly upgraded cab with sealed front and top windows; Newly developed Lovol's intelligent operation system enables, automatic recognition of working conditions, auxiliary operation, and personalized customization.

Easy maintenance

Engine maintenance interval of 500 hours, newly designed maintenance channel, tool box with added electric grease gun, easier maintenance.

Item Unit Parameter
Operating Weight kg 101000
Bucket Capacity 7
Rated Power kW 571/1800
Emissions - Stage III
Transportation Dimensions(L*W*H) mm 13710*4380*5300
Max.Digging Radius mm 12760
Max.Digging Height mm 12850
Max.Digging Depth mm 7180
Max.Unloading Height mm 8080
Bucket Digging Force kN 501
Stick Digging Force kN 451
Track Width mm 800
Video
FR1000F Working Condition
FR1000F Working Condition
Inquiry
Thank you for your interesting on our product, in order to serve you better please help us know you more by filling form below.
idenifyingcode
I agree with LOVOL’s privacy statement for more information on how we process personal data
Related
Products
FR700F
More

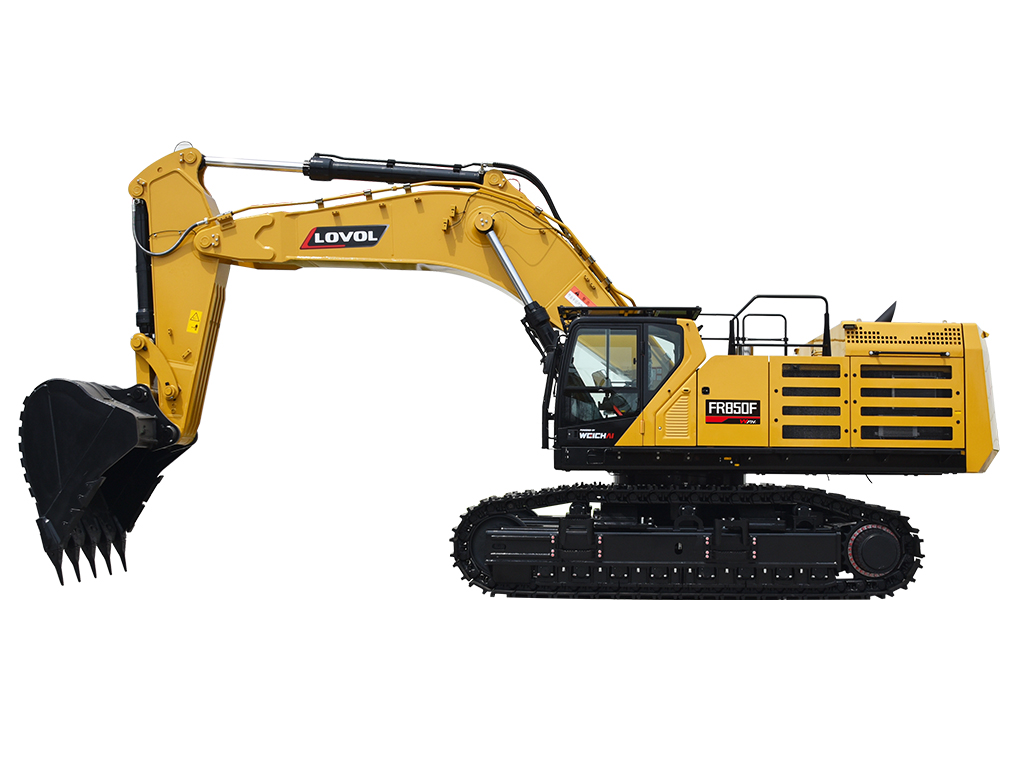

FR800F
More
FR1350F
More

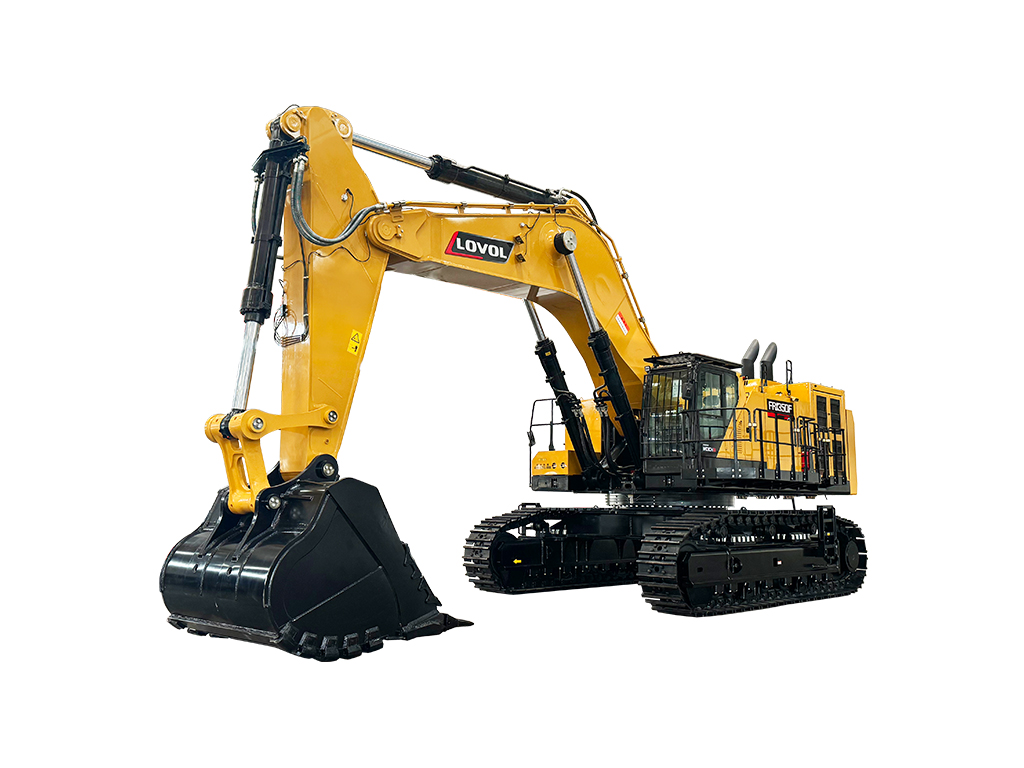

FR1500F
