Home  >  Products  >  Hydraulic Excavators  >  Large Excavators
Large Excavators

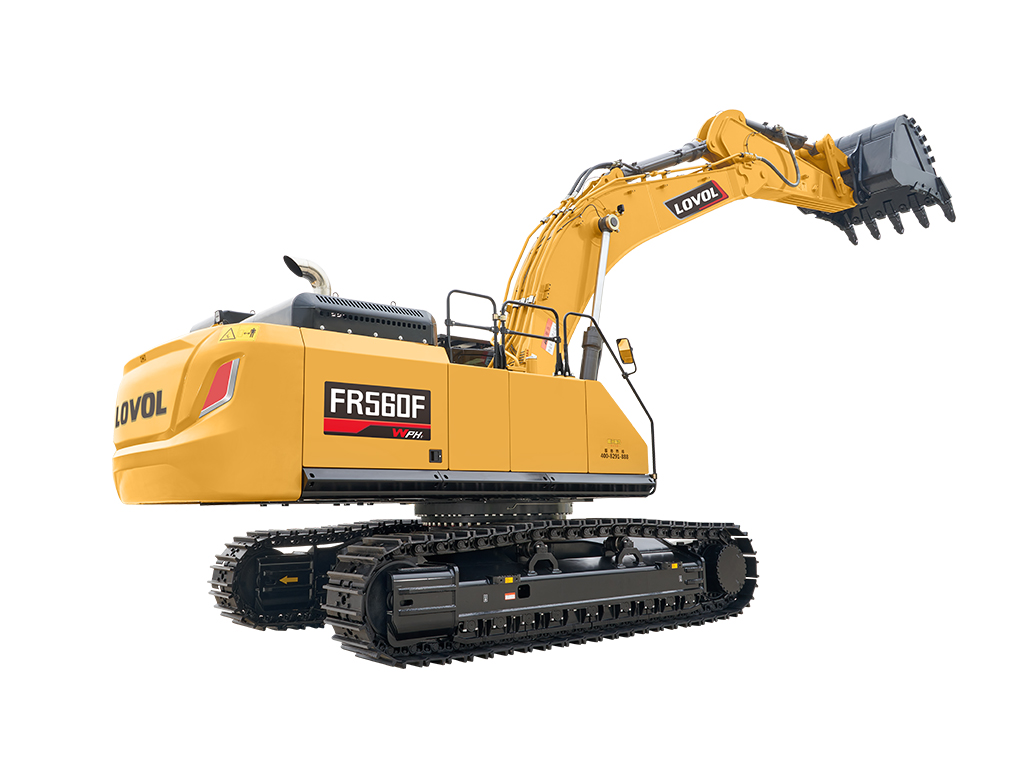

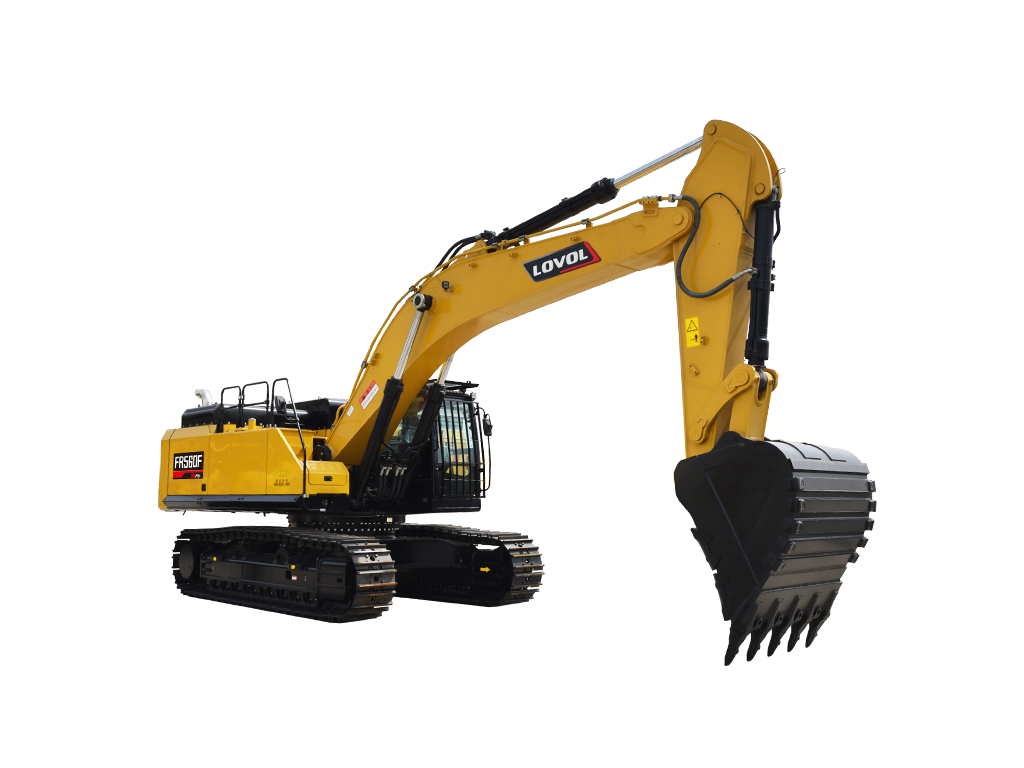

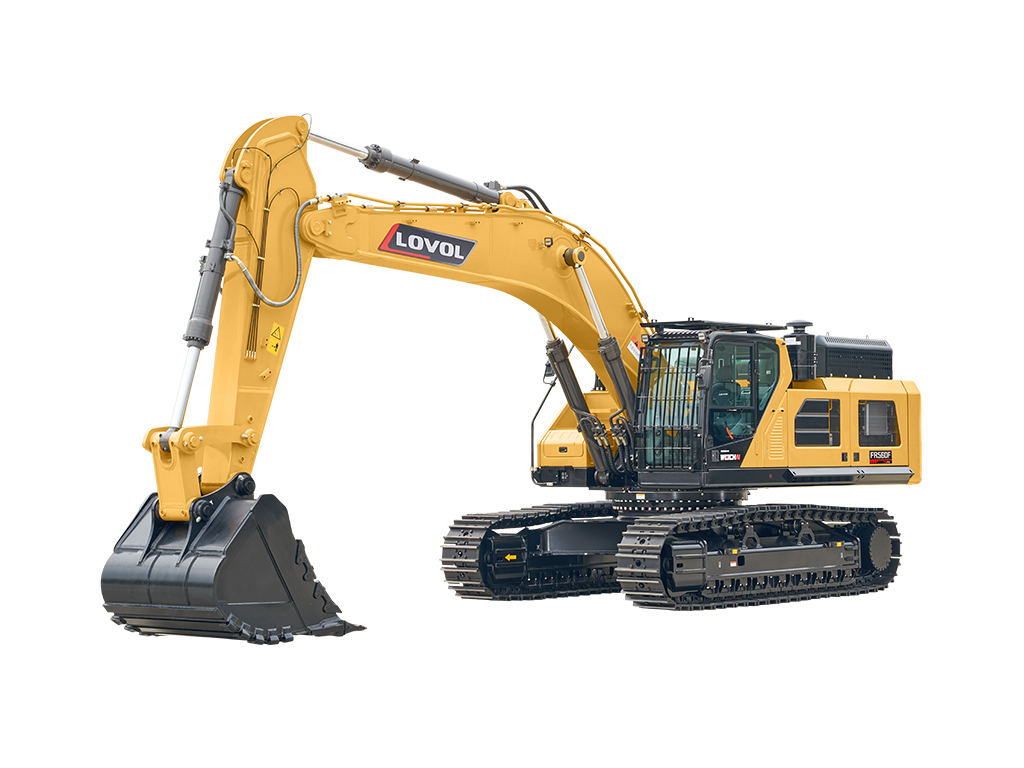

FR560F
  • Operating Weight(kg) 53000
  • Bucket Capacity(m³) 3.2
  • Rated Power(kW) 316/1900
Global Network
Product Manual
FR560F
FR560F
FR560F
FR560F
FR560F
FR560F
  • Features
  • Parameter
  • Video
  • Inquiry
  • Related Products

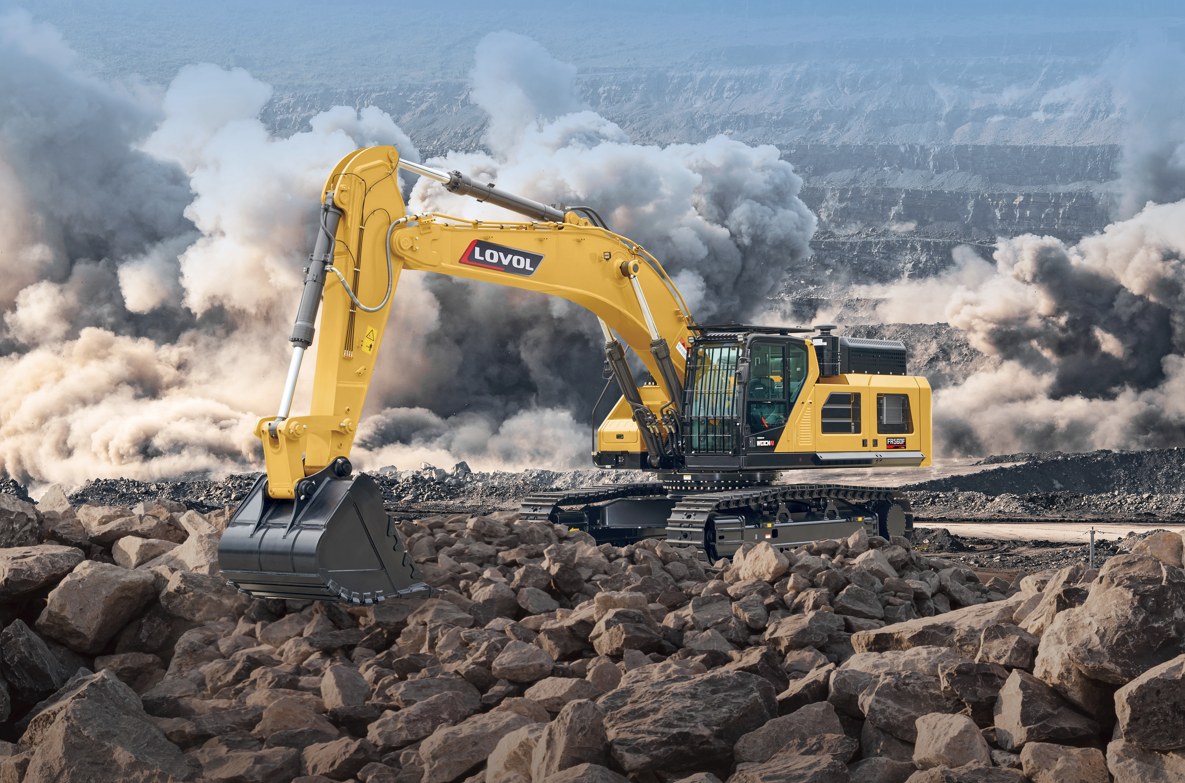

Reliable
Features
Reliable

Weichai high-end H platform engine with a lifespan of up to 30,000 hours, Weichai Linde powertrain with a 5-year or 10,000-hour warranty, large cross-section three-stage boom, forged axle seat, double support rollers, "U" shaped plate frame, more reliable.

Efficient

Weichai + Linde hydraulic powertrain technology, self-identifying working condition power allocation system, overall work efficiency improved by 10% compared to the E series, and fuel efficiency increased by more than 15%.

Comfortable

New ventilation duct cab, new seat, Lovol's new intelligent control system, intelligent vehicle control, intelligent insurance, onboard PAD, more comfortable operation.

Parameter
Product Manual
Item Unit Parameter
Operating Weight kg 53000
Bucket Capacity m³ 3.2
Rated Power kW 316/1900
Emissions - Stage III
Transportation Dimensions（L*W*H） mm 12205*3340*3907
Max.Digging Radius mm 11544
Max.Digging Height mm 10812
Max.Digging Depth mm 7172
Max.Unloading Height mm 7345
Bucket Digging Force kN 320
Stick Digging Force kN 250
Track Width mm 600
Video
FR560F Product Presentation
FR560F Product Presentation
Inquiry
Thank you for your interesting on our product, in order to serve you better please help us know you more by filling form below.
idenifyingcode
I agree with LOVOL’s privacy statement for more information on how we process personal data
