Small Excavators

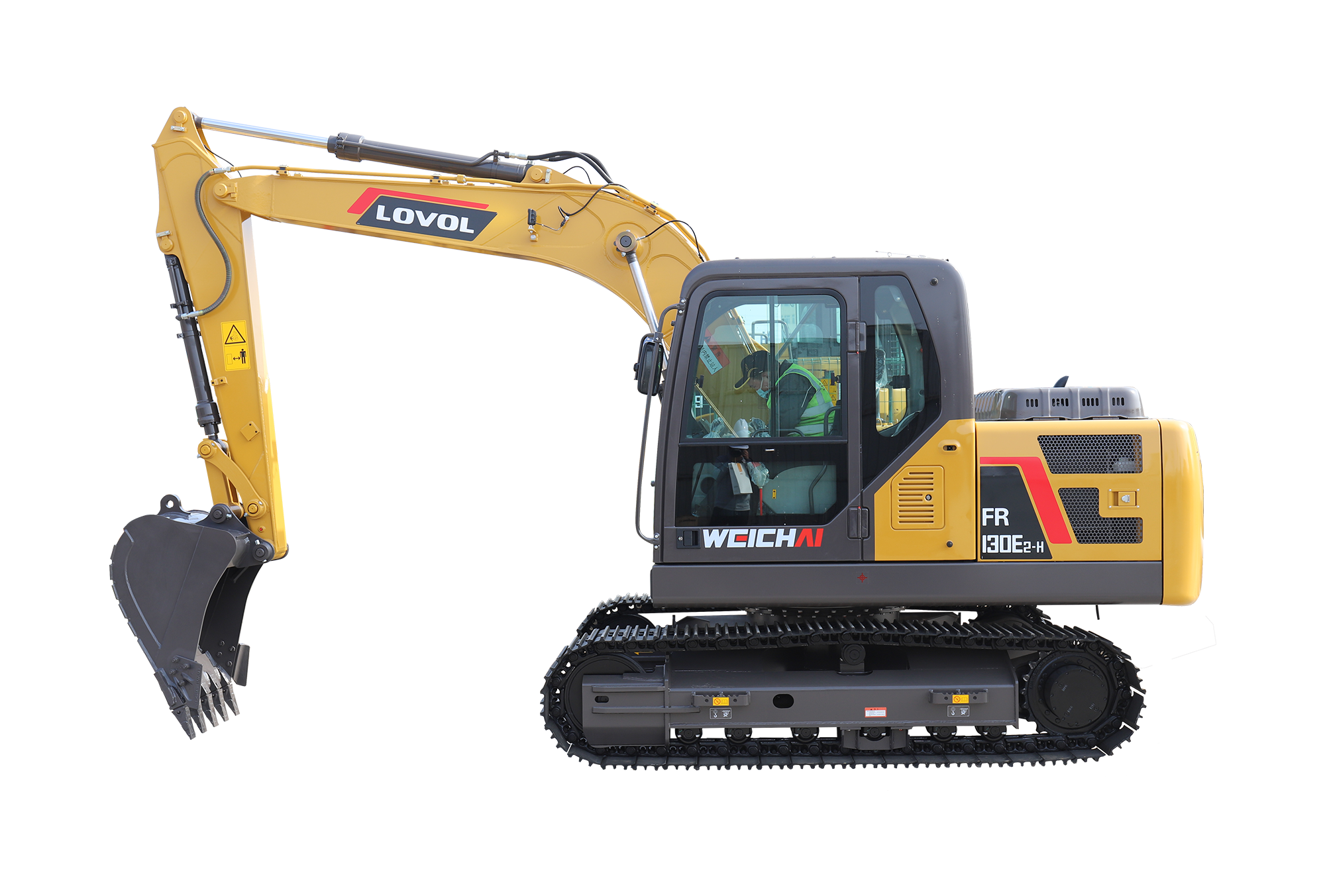

FR130E2-H
  • Operating Weight(kg) 12200
  • Bucket Capacity(m³) 0.55
  • Rated Power(kW) 86
Global Network
Product Manual
FR130E2-H
FR130E2-H
FR130E2-H
  • Features
  • Parameter
  • Video
  • Inquiry
  • Related Products

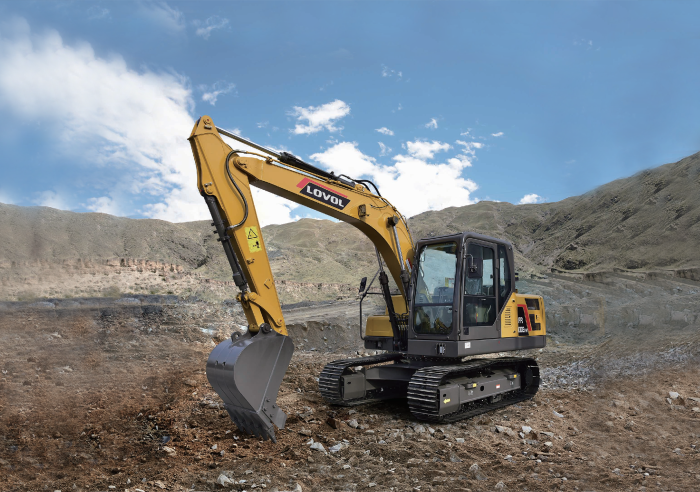

Efficient
Features
Efficient

LOVOL exclusive engine with high torque and low fuel consumption; energy-saving compact main valve with high flow and low pressure loss.

​Reliable

Engines, pumps, valves, motors, cylinders, controllers, etc. are equipped with first-class resources in the industry, the cab meets the requirements of ROPS and FOPS, and the fork and rear seat of the moving arm are made of alloy cast steel, which improves the life expectancy by 20%.

Comfortable

Air-conditioned cab, humanised design, LED lights, large screen display, more comfortable to operate.

Parameter
Product Manual
Item Unit Parameter
Operating Weight kg 12200
Bucket Capacity m³ 0.55
Rated Power kW 86
Emissions - Stage III
Transportation Dimensions（L*W*H） mm 7320X2505X2850
Max.Digging Radius mm 7780
Max.Digging Height mm 7950
Max.Digging Depth mm 5030
Max.Unloading Height mm 5600
Bucket Digging Force kN 91
Stick Digging Force kN 68
Track Width mm 500
