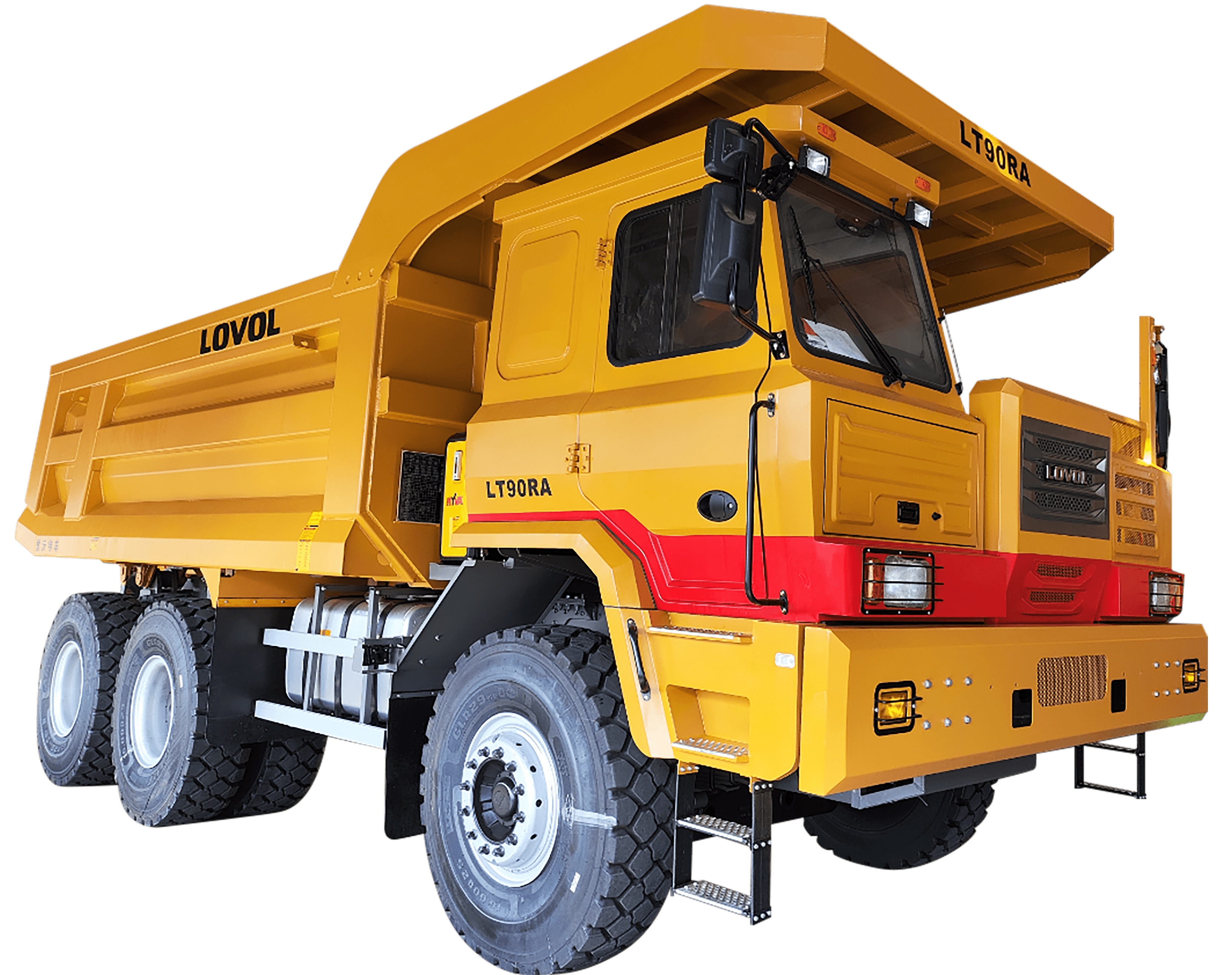

Weichai engine + Fast gearbox + Hande bridge, Weichai power assembly, high power and high efficiency; flat-mounted 42 cubic meter bucket, high efficiency.
The new narrow-body cab has large space, good vision, low noise and more comfortable driving.
The front suspension adopts a five-link non-independent oil-gas suspension; the rear suspension is a balance shaft + combined V-type 8-thrust rod structure; the main beam has three layers of 10+10+8mm, with high bending and torsion resistance, a cross-sectional height of 380mm, and a low center of gravity; the whole vehicle is more reliable.
Item | Unit | Parameter |
Gross Vehicle Weight | kg | 160000 |
Max.Chassis Weight | kg | 110000 |
Emissions | - | Stage III |
Dimensions(L*W*H) | mm | 10450×4360×4550 |
Struck | m³ | 55 |
Wheel Base | mm | 4600+1900 |
Max.Travel Speed | km/h | 38 |
Max.Gradeability | ° | 29 |
Min.Turning Diameter | m | 30 |
Min.Ground Clearance | mm | 410 |
Engine Model | - | WP17G770E304 |
Rated Power | kW | 566 |
Transmission | - | 8DSS330+FHB400 |
Axle Load Capacity | t | 35/60/60 |
Front Suspension Type | - | front rolled lugs and back slide plate+pushrod structure |
Rear Suspension Type | - | Leaf spring balance suspension |
Frame Width | mm | 1346 |
Tyre Model | - | 480/95R29 |
