Electric Excavators

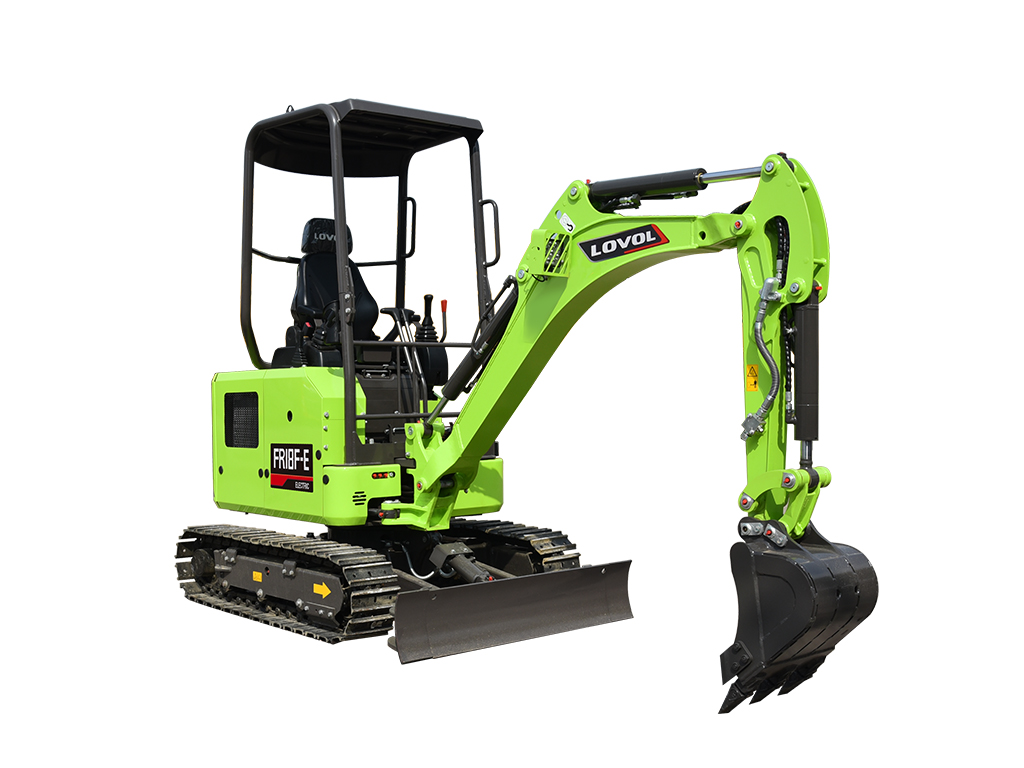

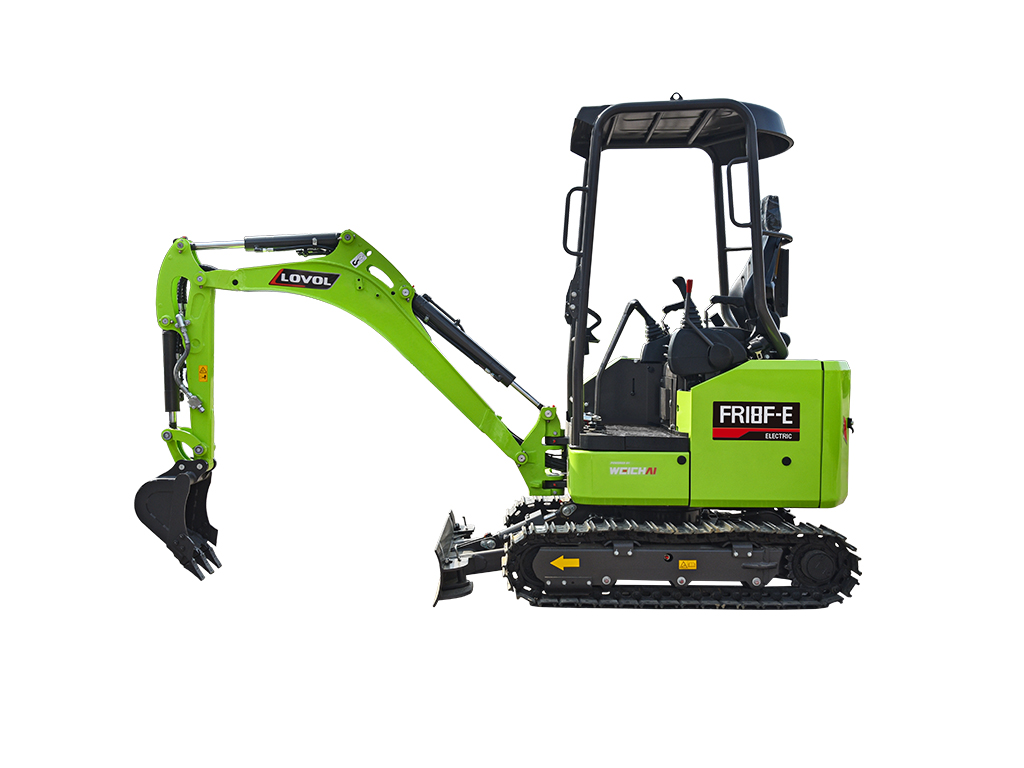

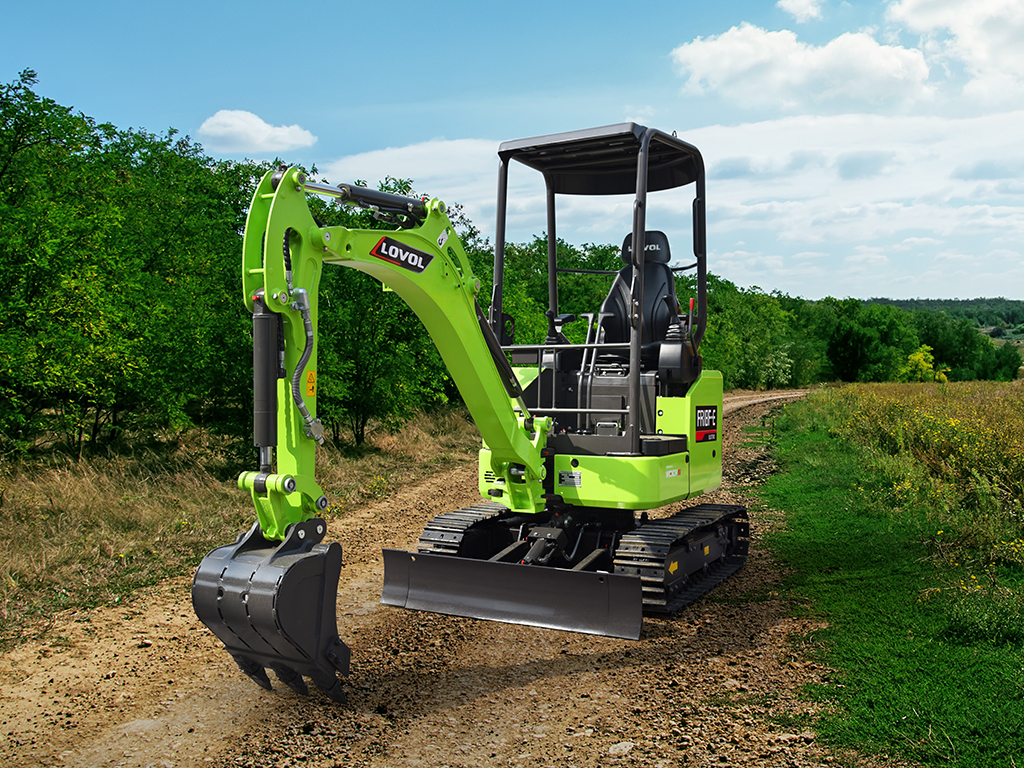

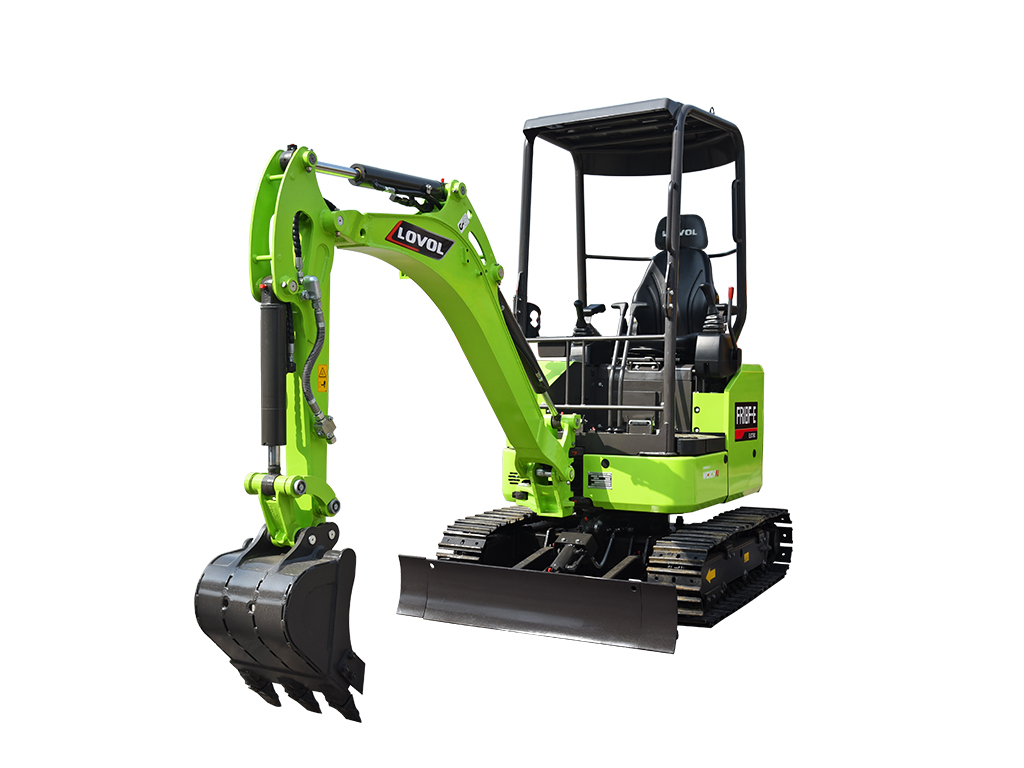

FR18F-E
  • Operating Weight(kg) 1940
  • Bucket Capacity(m³) 0.04
  • Motor power(kW) 12
Global Network
Product Manual
FR18F-E
FR18F-E
FR18F-E
FR18F-E
FR18F-E
  • Features
  • Parameter
  • Video
  • Inquiry
  • Related Products
1
Features
1

It can be assembled with quick hitch and auger, and can also be adapted with ripper, cleaning buckets, ditching buckets, crushing hammers and other attachments.

2

Telescopic chassis, the moving arm can be independently shifted left and right sideways, the narrow space operation is more flexible

3

The working device pipeline and traveling motor pipeline are built-in, and the movable arm cylinder is upward-mounted to avoid collision

4

Equipped with national standard AC/DC charging interface, suitable for a variety of charging scenarios.

Parameter
Product Manual
Item Unit Parameter
Operating Weight kg 1940
Bucket Capacity m³ 0.04
Motor power kW 12
battery capacity kW/h 21.5
Transportation Dimensions（L*W*H） mm 3615*2347*990
Max.Digging Radius mm 3905
Max.Digging Height mm 3540
Max.Digging Depth mm 2310
Max.Unloading Height mm 2440
Bucket Digging Force kN 11.3
Stick Digging Force kN 9.3
Track Width mm 230
Video

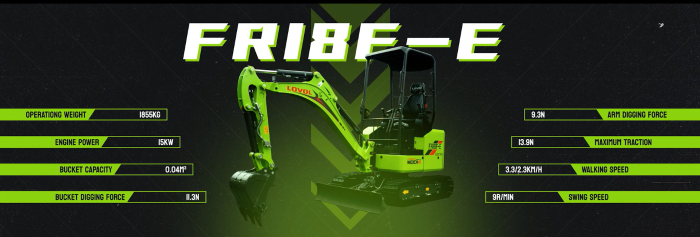

Product Presentation
Product Presentation
