Backhoe Loaders

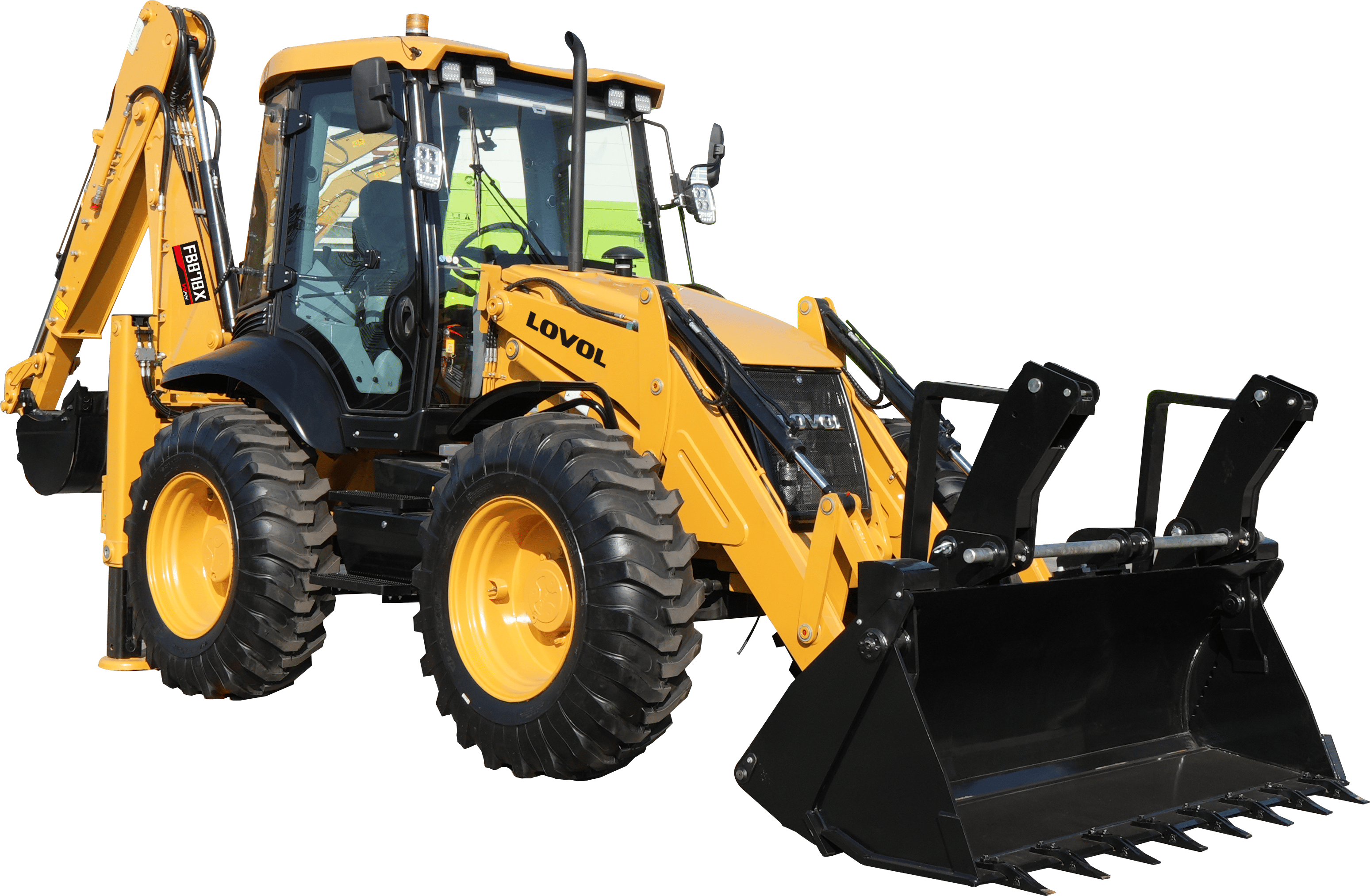

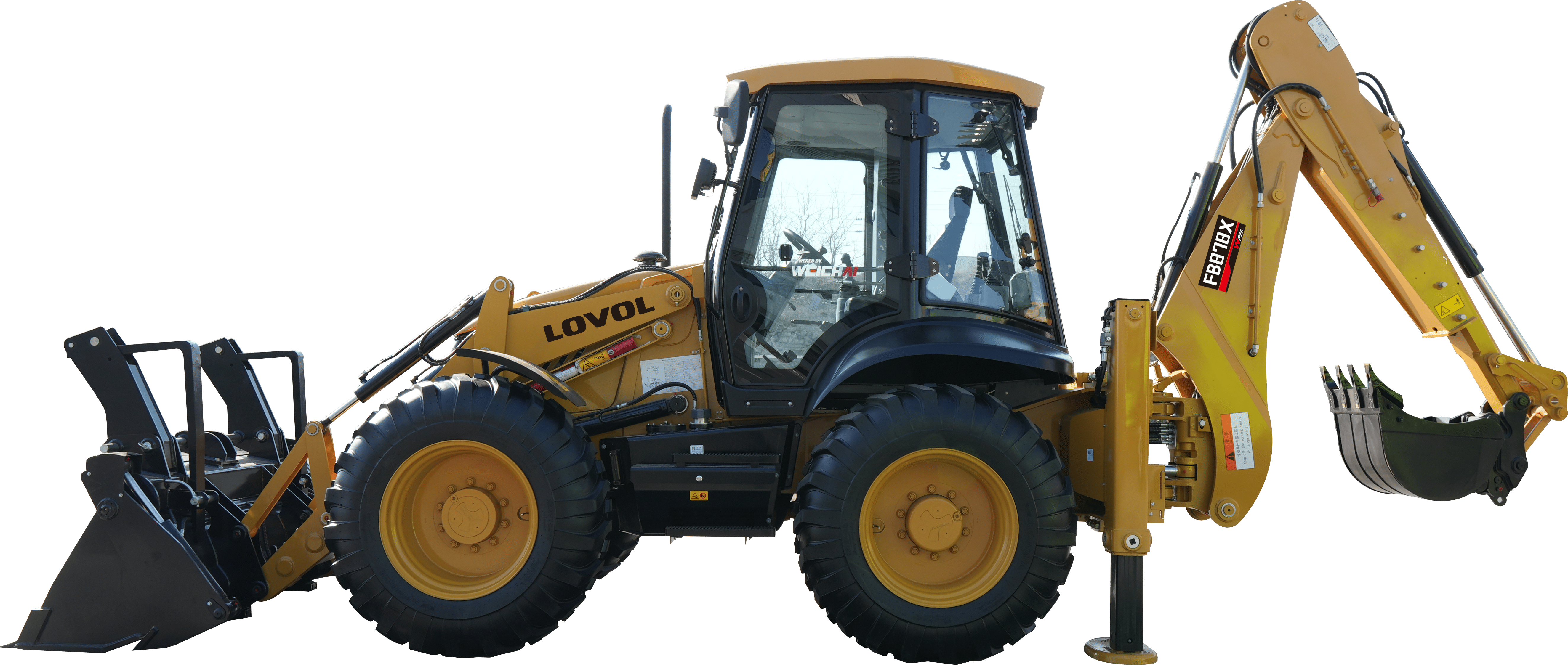

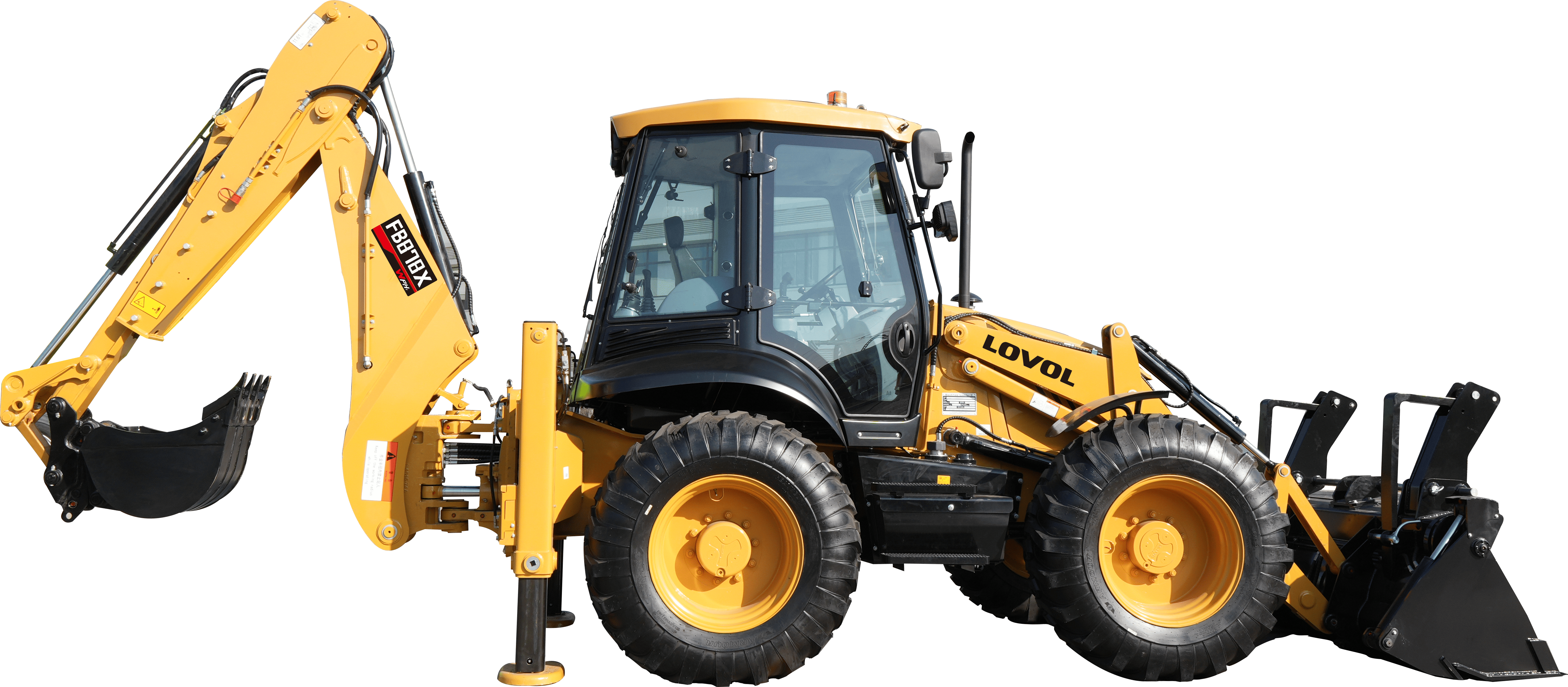

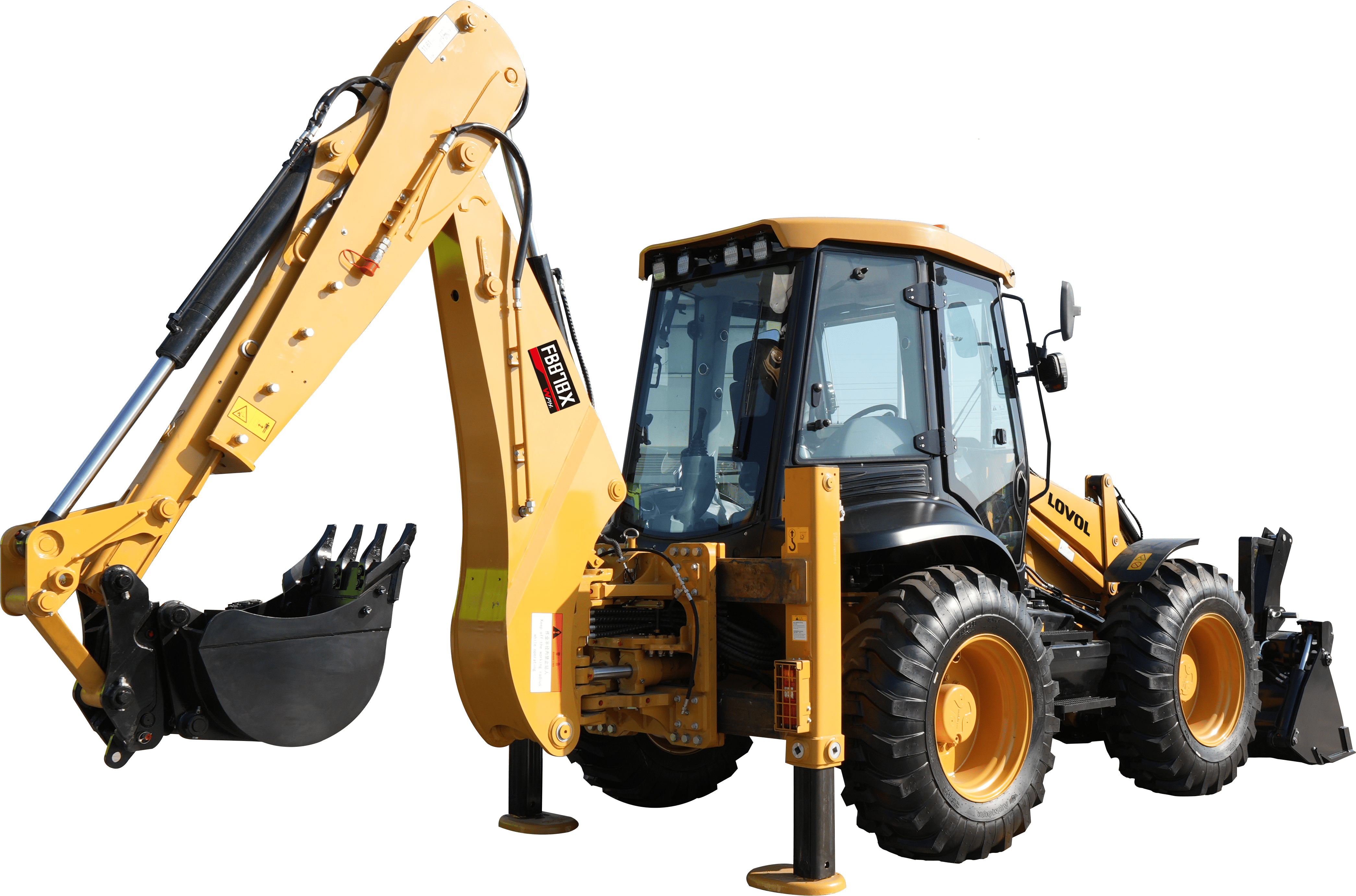

FB878X
  • Overall mass (kg) 10500
  • Engine Rated Power(kw) 74
  • Dimensions （L*W*H）(mm) 6390X2480X3670
Global Network
Product Manual
FB878X
FB878X
FB878X
FB878X
FB878X
FB878X
  • Features
  • Parameter
  • Inquiry
  • Related Products
Features
Efficient

High-pressure common rail electronically controlled injection engine, plunger hydraulic pump, fully hydraulic load-sensing steering system, pilot control with compound actions on the digging end, handle power cut-off function on the loading end, four-wheel steering, high efficiency and energy saving.

Reliable

Weichai engine, Carraro axles and transmission specific for backhoe loaders, 2/4-wheel drive switchable, plunger pump, box-type loading boom, reinforced frame and digging arm, waterproof connectors, reliable overall machine.

Comfortable

Spacious FOPS & ROPS cab, adjustable pilot control handle on the digging end, H-leg proximity switch limit, power cut-off function for parking brake, safer and more comfortable operation.

Easy maintenance

Quick change, telescopic boom, multiple attachment options, more convenient; Crab walk adapts to various working conditions.

Parameter
Product Manual
Item Unit Parameter
Overall mass kg 10500
Engine Rated Power kw 74
Dimensions （L*W*H） mm 6390X2480X3670
Engine brand Weichai
Rated Power kW 74
Max. Travel Speed Km/h 32
working pressure Mpa /
Wheel Base mm 2290
Gradeability ° /
Tire（Front） - 16.9-28-R4
Tire（Rear） - 16.9-28-R4
Loading Specifications /
Bucket Capacity m³ 1
Max. Breakout Force kN /
Boom Max. Breakout Force kN /
Subtotal s 9.8
Unloading Height mm 2950
Unloading distance mm 700
Digging Specifications /
Digging Bucket Capacity m³ 0.18
Bucket Digging Force kN 45
Bucket rod digging force kN 45
Max. Unloading Height mm 3370/4080
Max. Digging Depth mm 4440/5590
Max. Digging Radius mm 5510/6610
Inquiry
Thank you for your interesting on our product, in order to serve you better please help us know you more by filling form below.
idenifyingcode
I agree with LOVOL’s privacy statement for more information on how we process personal data
Related
Products
FLB468-II EU IIIA(Thailand)
FLB468-II EU IIIA(Thailand)
More
FB888H-HST
FB888H-HST
More
FB878M
FB878M
More

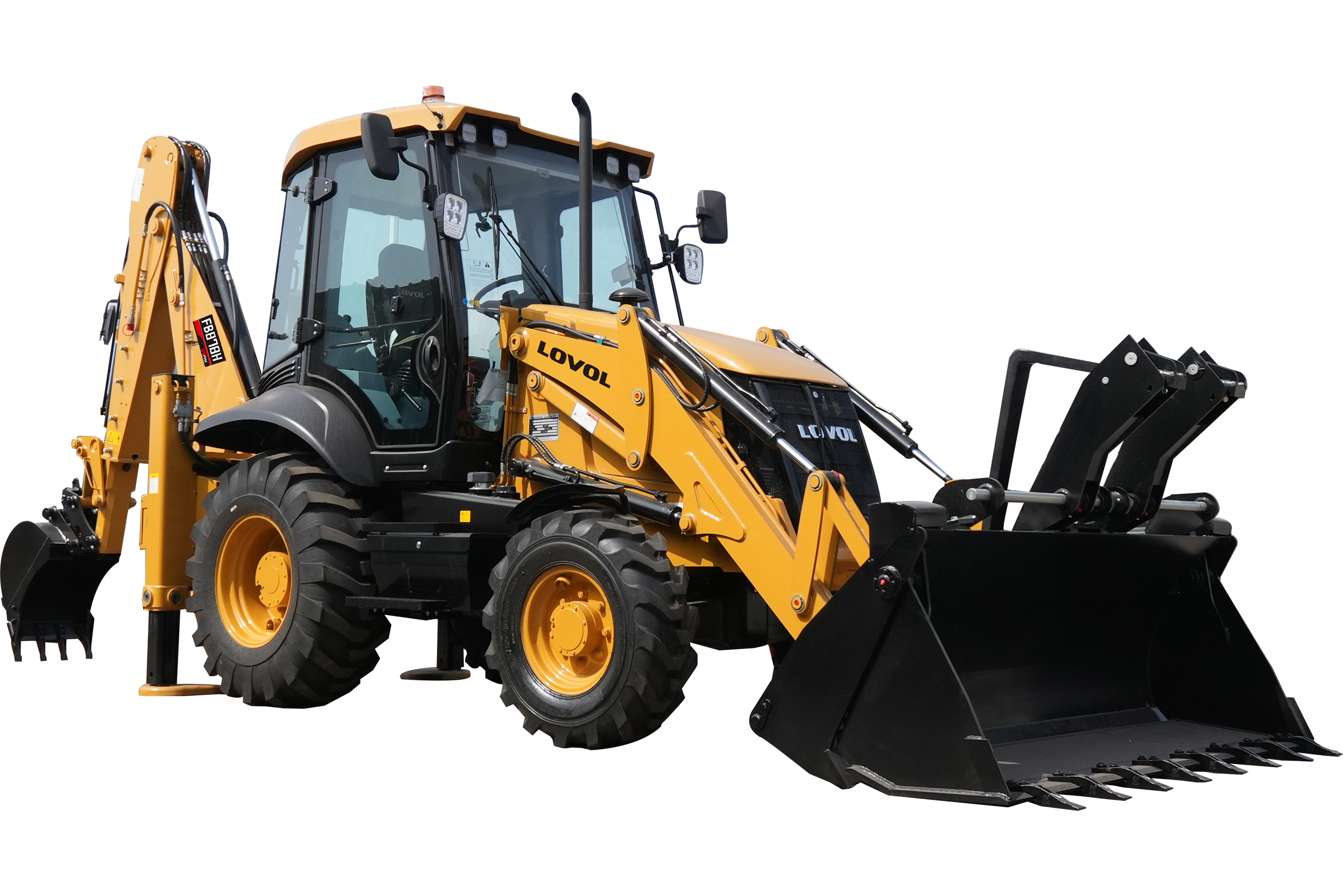

FB878H
